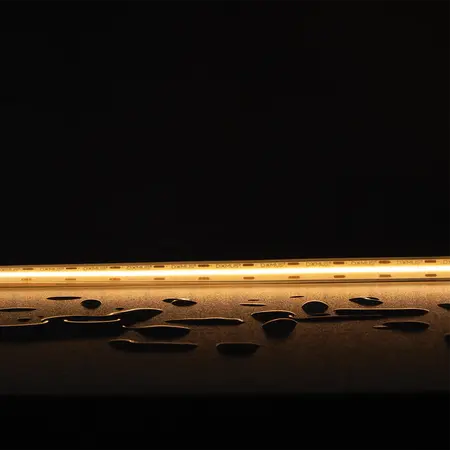

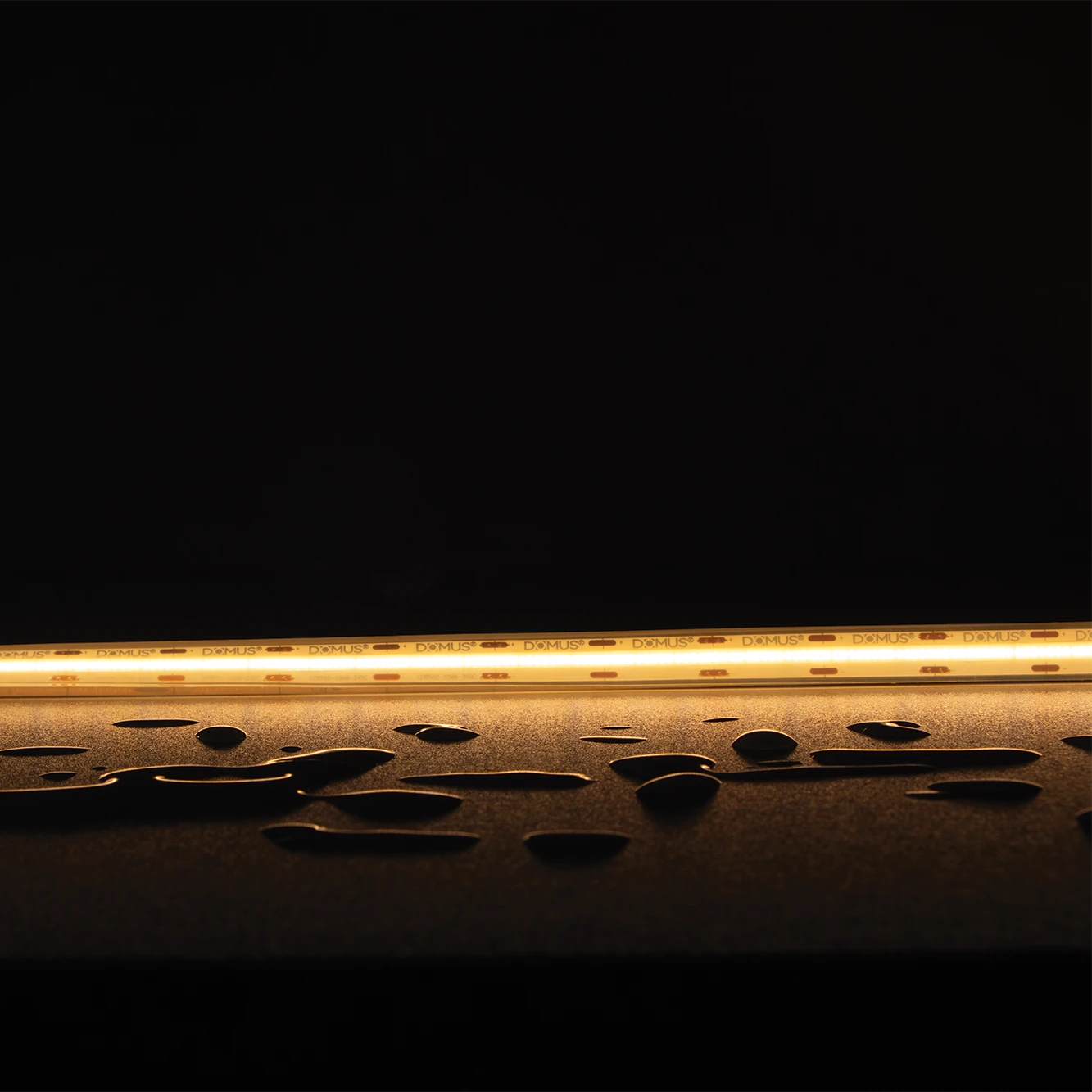

Plex-Ultra COB LED Strip 10W/m 24V IP67 3000K Per Metre Domus
Domus Plex-Ultra COB LED Strip, 10W/m, 24V DC, IP67, CRI90, 560 LED/m, 3000K, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Plex-Ultra IP67 LED Strip, COB LED Strip Light, 24V LED Tape, Dotless LED Strip
- Power: 10W per metre
- Input Voltage: 24V DC
- Colour Temperature: 3000K warm white
- Colour Rendering Index: CRI ≥90
- Light Source: COB LED
- LED Density: 560 LEDs per metre
- Lumen Output: Approximately 770 lm/m at 3000K
- IP Rating: IP67 with silicone coating
- Beam Angle: 180°
- Cutting Increment: 25mm
- Maximum Run: 13m with single-end feed; 26m with both-end feed
- Dimming: Yes, with compatible dimmer and driver
- Wiring: Parallel
- Required Driver: 24V DC constant-voltage LED driver
- Installation Requirement: Install on an aluminium heat sink to manage heat and maintain warranty coverage
- Dimensions (H x L x W): 2.8mm x 1000mm x 10mm
- Weight: 0.15 kg
- True dotless COB illumination
- IP67 protection for waterproof lighting installations
- High CRI90 light output for improved colour rendering
- 24V DC operation supports longer run lengths with reduced resistive heat
- 560 LEDs per metre for smooth, continuous illumination
- 25mm cutting increments for flexible sizing
- Dimmable with suitable 24V DC equipment
- Suitable for indoor highlighting and wet-area applications when installed correctly
- Installation should be performed by a licensed electrician. Use a compatible 24V DC constant-voltage LED driver, suitable dimming equipment where required, and install the strip on an aluminium heat sink in accordance with the manufacturer's instructions and applicable electrical installation requirements.
- Kitchen and cabinetry lighting
- Bathroom and laundry highlighting
- Bar and restaurant feature lighting
- Residential and commercial accent lighting
- Indoor linear illumination
- Waterproof highlighting installations within the product's IP67 limitations
- AS/NZS 3000:2018 – electrical installation requirements for low-voltage lighting systems
- AS/NZS 61347.2.13 – applicable safety requirements for the required LED driver or controlgear
- LED technology provides efficient illumination compared with many traditional light sources
- Longer continuous runs can reduce the number of joins, connectors and associated installation materials
- Low-voltage 24V DC operation supports efficient system design
- Aluminium heat-sink installation assists thermal management and may extend product service life, reducing replacement waste
Domus COB LED Strips have a 3-year replacement warranty for residential applications, extending to 5 years when used with Domus drivers. Commercial applications receive a 12-month replacement warranty, extending to 2 years when used with Domus drivers. Warranty eligibility requires licensed installation and compliance with Domus installation instructions.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
