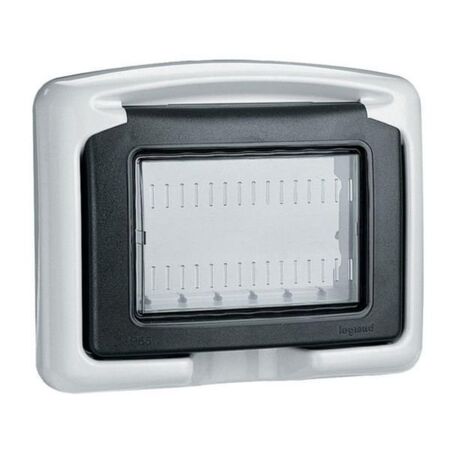

Plexo™ Support Frame 55 for Mosaic Vela 3 Mod IP55 Weatherproof Hinged Lid Halogen-Free Legrand
The Plexo™ Support Frame 55 is designed for Mosaic and Vela 3-module installations, featuring an IP55 weatherproof rating and a hinged lid for easy access.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- IP Rating: IP55 weatherproof with membrane
- Impact Strength: IK00
- Material: Halogen-free thermoplastic
- Mounting: Flush-mounted, screw fastening
- Operating Temperature: -5°C to 35°C
- Storage Temperature: -10°C to 70°C
- Colour: Grey (RAL 7015)
- Number of Modules: 3 horizontal x 1 vertical
- Hinged Lid: Yes
- Dimensions (H x L x W): 100mm x 38mm x 122mm
- Weight: 0.15 kg
Key Features
- Weatherproof IP55 rated plate frame with membrane
- Allows operation of switches without opening cover while maintaining IP55 rating
- Made from halogen-free thermoplastic material
- Glossy grey finish (RAL 7015)
- Hinged lid for easy access
- Screw mounting type fastening
- IK00 impact strength
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with IP55 sealing and electrical safety standards.
Applications
- Flush-mounted installation for Mosaic 3-module electrical mechanisms
- Suitable for indoor and outdoor use requiring IP55 weatherproof protection
- Ideal for residential, commercial, and industrial electrical wiring setups
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces environmental impact
- Durable thermoplastic construction extends product lifespan, reducing waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Plexo™ Support Frame 55 for Mosaic/Vela 3 Module IP55 Grey is available for immediate purchase, ideal for weatherproof electrical installations in residential and commercial buildings.
