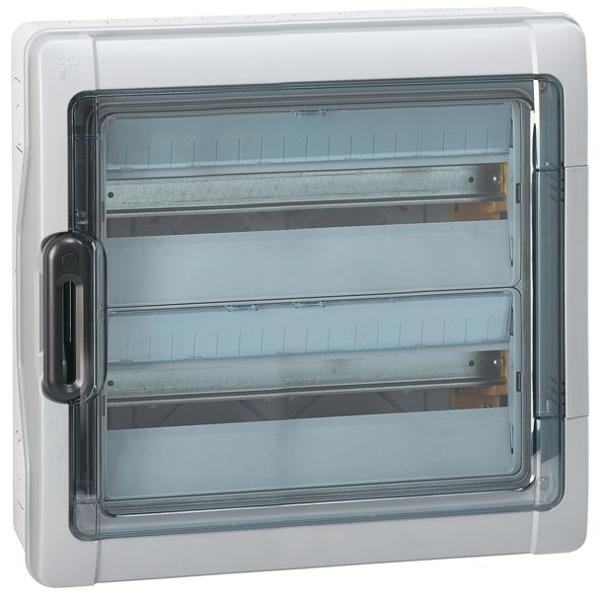

Plexo3 IP65 Enclosure 36 Modules | IK09 Shock Resistance | Self-Extinguishing Material | Light Grey | @EA of 1 | by Legrand
The Plexo3 IP65 Enclosure is designed for robust electrical installations, featuring an IP65 rating for dust and water protection, and IK09 shock resistance for enhanced durability. Ideal for industrial, agricultural, and photovoltaic applications, this enclosure ensures safety with its lockable door and self-extinguishing material, making it a reliable choice for outdoor setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plexo3 IP65 Enclosure 36 Modules | IK09 Shock Resistance | Self-Extinguishing Material | Light Grey | @EA of 1 | by Legrand
Brand: Legrand
SKU: 601986
Alternatively Known As: Legrand Plexo3 IP65 Distribution Enclosure, Legrand 36 Module Electrical Box, Legrand Industrial Electrical Enclosure
Technical Specifications
- IP65 rated enclosure for dust and water protection
- IK09 shock resistance rating
- Class II electrical insulation
- Self-extinguishing polystyrene resistant to 650°C incandescent wire
- Reversible door and cabinet with removable chassis and faceplates
- 2-position rail for modular products with 150 mm spacing
- Lockable door handle with double closing point
- Includes 2 cable glands (1 x PG9, 1 x PG13.5) and 1 claw for earthing
- Colour: Light grey box (L750A), dark grey cover (R746A)
- Complies with IEC 61439.3 and AS/NZS 61439.3
- Dimensions (H x L x W): 434mm x 161mm x 448mm
- Weight: 5.5 kg
Key Features
- IP65 rated for protection against dust and water jets
- IK09 impact resistance for enhanced durability
- Class II electrical insulation
- Self-extinguishing material with resistance to 650°C incandescent wire
- Reversible door and cabinet with removable chassis and faceplates
- Lockable door handle with double closing point for strong seal and safety
- Shock-resistant polystyrene construction
- Knockout cable entries on all sides with supplied cable glands
- Compatible with modular products and moulded cases
- Can be fitted with perforated plates and solid faceplates for non-modular products
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper sealing for IP65 protection.
Applications
- Industrial applications requiring robust electrical enclosures
- Outdoor installations needing IP65 protection
- Agricultural electrical setups
- Photovoltaic (solar) system installations
Standards & Compliance
- AS/NZS 61439.3 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- IP65 rating protects internal components from environmental damage, extending product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Plexo3 IP65 Enclosure 36 Modules (2x18) is available for immediate purchase, ideal for industrial, agricultural, and photovoltaic electrical installations.
