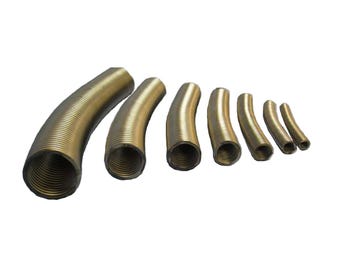

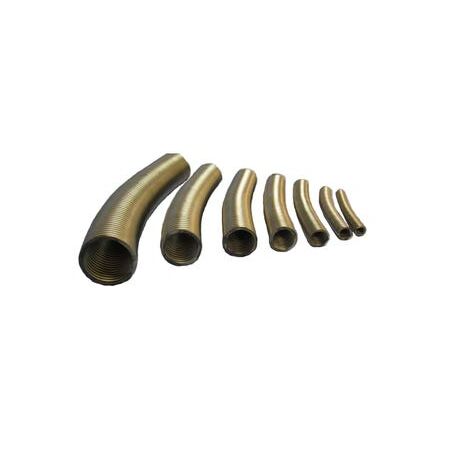

Pliable SS Conduit 16mm x 20m | IP68 Rated | Bird Proof Design & High Impact Resistance by Cabac
The Cabac Pliable SS Conduit 16mm x 20m is a 304 grade stainless steel flexible conduit designed for high impact resistance and protection against bird damage, suitable for harsh environments including high temperature and corrosive conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PLIABLE SS CONDUIT 16MM X 20M BIRD PROOF
Brand: Cabac
SKU: SSP16
Alternatively Known As: Flexible Stainless Steel Conduit, Stainless Steel Pliable Conduit, SSP Conduit, Bird Proof Metal Conduit, Flexible Metal Conduit 16mm
Technical Specifications
- Trade Size: 16mm
- Internal Diameter: 12mm
- Length: 20 meters
- Material: 304 grade stainless steel
- Working Temperature Range: -60 to +200 degrees Celsius
- Compression Resistance: HD 1250N
- Conforms to IEC 61386-1 2008 and IEC 61386-22 2002 standards
- IP Rating: IP68
- Dimensions (H x L x W): n/a mm x 20000mm x n/a mm
- Weight: 2.5 kg
Key Features
- Made from butt-welded 304 grade stainless steel tube with close pitch annular corrugations
- High impact and compression resistance (HD 1250N)
- Cockatoo proof design to prevent wildlife damage
- Suitable for working temperatures from -60 to +200 degrees Celsius using silicone 'O' rings
- Flexible pliable conduit type SSP
- Corrosion, high temperature, flammability, halogen, and mechanical damage resistant
- IP68 rated for protection against dust and water ingress
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper mechanical protection.
Applications
- Industrial and commercial electrical installations requiring corrosion and mechanical damage resistance
- Environments exposed to high temperature, flammability, or halogen concerns
- Outdoor and wildlife-prone areas needing protection against bird damage
- Cable protection in harsh or demanding conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact of disposal
- Protects cables from damage, reducing resource waste from cable repairs and replacements
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Pliable SS Conduit 16mm x 20m Bird Proof is available for immediate purchase, ideal for industrial, commercial, and outdoor electrical installations requiring robust cable protection.
