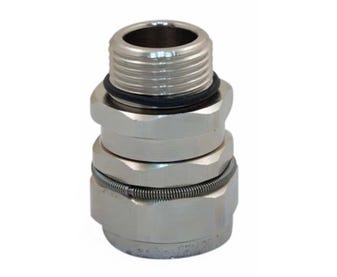

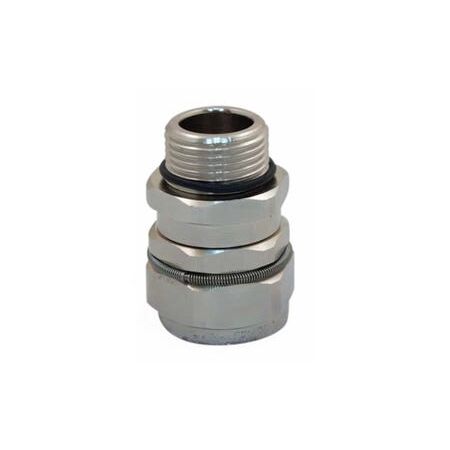

Pliable Straight Brass Connector | IP68 Rated | Nickel-Plated Brass & Swivel Male Thread by Cabac
Nickel-plated brass straight fitting designed for CABFLX SSP stainless steel conduit, providing robust protection against mechanical damage, bird interference, corrosion, and extreme environmental conditions. Features swivel male thread and IP68 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PLIABLE STRAIGHT BRASS CONNECTOR 40MM
Brand: Cabac
SKU: CBM40
Alternatively Known As: Nickel-Plated Brass Straight Fitting, Stainless Steel Conduit Connector, CABFLX SSP Straight Connector, Brass Conduit Fitting
Technical Specifications
- Connector body material: Nickel-plated brass
- Sealing rings (x2): Nylon 66
- Spring washer (x1): Steel
- Working temperature range: -60°C to +200°C (with silicone O-ring seals)
- Ingress Protection: IP68
- Impact resistance tested to IEC 61386 standards
- Compression resistance suitable for heavy-duty installations
- Dimensions (H x L x W): 15mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Designed for use with CABFLX SSP stainless steel conduit
- Swivel male thread for ease of installation
- IP68 rated for superior dust and water ingress protection
- Halogen-free construction for high safety standards
- Resistant to mechanical impact and compression
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and mechanical protection.
Applications
- Industrial and outdoor installations requiring protection from mechanical damage
- Corrosive environments or high-temperature applications
- Areas where halogen-free materials are mandatory
- Electrical or communication installations needing reliable sealing and impact resistance
Standards & Compliance
- Complies with AS/NZS 61386 for conduit systems (aligned with IEC 61386-1 and IEC 61386-22)
Environmental Benefits
- Halogen-free construction reduces harmful emissions in case of fire
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Pliable Straight Brass Connector 40mm is available for immediate purchase. Ideal for industrial, outdoor, and high-temperature conduit installations.
