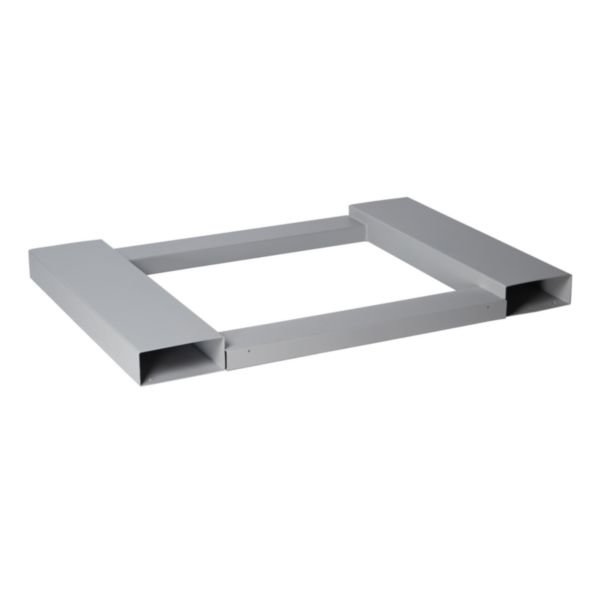

Plinth for XL³ 6300 Enclosure | Durable Steel Construction | IP30 & IK07 Rated | Grey Finish | @Each of 1 | by Legrand
The Plinth for XL³ 6300 enclosure is designed for robust support in electrical distribution systems, constructed from durable steel and finished in grey (RAL 7004) for corrosion resistance. With an IP30 protection rating and IK07 impact resistance, it's perfect for industrial and commercial switchboard installations, ensuring stability and safety for your modular metal enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plinth for XL³ 6300 Enclosure | Durable Steel Construction | IP30 & IK07 Rated | Grey Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 021132
Alternatively Known As: XL3 6300 Enclosure Base Plinth, Electrical Enclosure Plinth, Switchboard Base Support
Technical Specifications
- Material: Steel
- Colour: Grey (RAL 7004)
- Height: 100 mm
- Depth: 975 mm
- Width: 1425 mm
- Protection Rating: IP30
- Impact Resistance: IK07
- Suitable for enclosure building width: 1425 mm
- Suitable for enclosure building depth: 975 mm
- Not suitable for aeration/de-aeration or cable patch
- Dimensions (H x L x W): 100mm x 975mm x 1425mm
- Weight: 25 kg
Key Features
- Constructed from durable steel for robust support
- Designed to fit XL³ 6300 enclosures with 1425mm width and 975mm depth
- Finished in grey (RAL 7004) for corrosion resistance and aesthetic integration
- IP30 and IK07 rated for protection and impact resistance
- Modular design allows plinths to be placed side by side
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical enclosure assembly and safety standards.
Applications
- Used as a base support for XL³ 6300 distribution enclosures
- Suitable for industrial and commercial electrical switchboard installations
- Ideal for modular metal enclosure assemblies in electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Steel construction is recyclable, supporting sustainable material use
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Plinth for XL³ 6300 enclosure is available for immediate purchase, ideal for use in electrical distribution switchboards and power cabinet assemblies.
