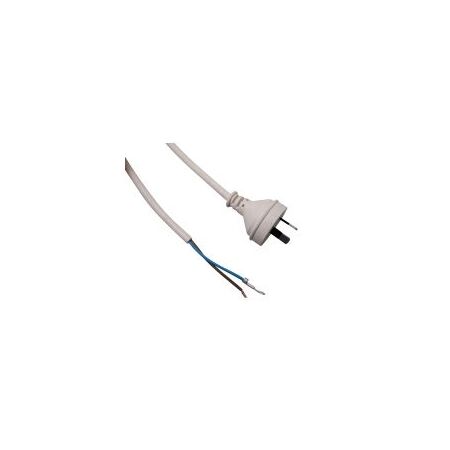

Plug and Cord 2 Pin 7.5A White 2m Cabac
Cabac Plug and Cord features 2 pin 7.5A plug, 2m ordinary duty flex, and white finish. Ideal for double insulated appliances and lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 2P7.5WH2, 2-Pin Appliance Cord, Double-Insulated Appliance Power Cord, White Moulded Plug and Lead
Technical Specifications
- Product Code: 2P7.5WH2
- Plug Configuration: 2-pin Australian moulded plug
- Current Rating: 7.5A
- Voltage Application: 250V
- Cable Type: Ordinary-duty flexible cable
- Conductor Size: 0.75mm²
- Cable Colour: White
- Cable Length: 2m
- Ring Terminal: Yes
- Standard Strip Length: 65mm outer sheath and 6mm inner conductor
- Earth Terminal: 5mm terminal when installed
- Dimensions (H x L x W): 30mm x 2000mm x 25mm
- Weight: 0.14 kg
Key Features
- White finish for appliance and lighting applications
- 2-pin configuration for double-insulated appliances
- 7.5A rating for low-current electrical equipment
- 2m ordinary-duty flexible cable
- Moulded plug construction
- Supplied with ring terminal
- Suitable for connecting power to equipment, light fittings and lamps
Professional Installation Requirements
- Termination or replacement on mains-powered equipment should be performed by a licensed electrician in accordance with applicable Australian electrical regulations and the appliance manufacturer's instructions.
Applications
- Double-insulated appliances
- Table lamps and lighting equipment
- Small electrical equipment
- Replacement power leads for compatible appliances
- Equipment requiring a 2-pin 7.5A Australian plug and cord
Standards & Compliance
- AS 3112 for Australian plug configuration
- AS 3131 for electrical accessories where applicable
- AS 3191 for insulated flexible cords
Environmental Benefits
- Enables repair or replacement of worn appliance leads, potentially extending equipment service life
- A replaceable cord can reduce premature disposal of otherwise serviceable appliances
- Compact 0.75mm² construction minimises material use for low-current applications
Warranty Information
CABAC warranty coverage is generally one year from the date of supply for defects, subject to the manufacturer's terms, correct installation and proper use. Australian Consumer Law rights also apply.
Available Now
Available through authorised CABAC distributors in Australia.
