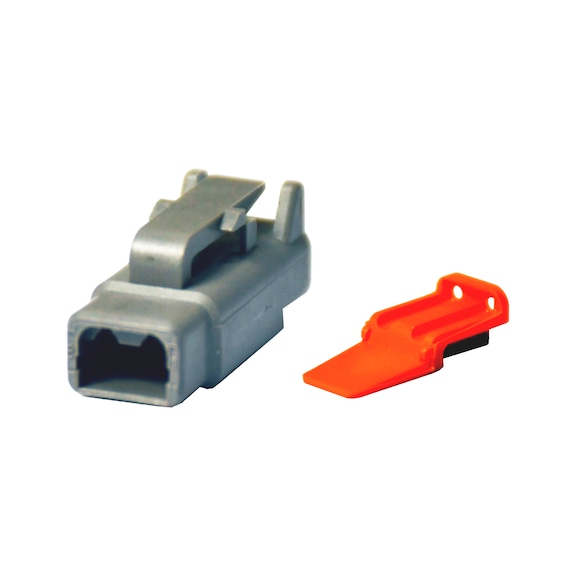

Plug Housing Deutsch DTM | Environmentally Sealed | 7.5A Capacity | by Wurth
The Plug Housing Deutsch DTM is designed for OEM applications requiring reliable, sealed electrical connections. With a temperature resistance of -55 to 125 °C and a maximum current of 7.5A, this thermoplastic housing ensures durability in automotive and industrial electrical systems. Its latched mating wedgelocks provide secure connections, making it ideal for environments needing protection against contaminants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug Housing Deutsch DTM | Environmentally Sealed | 7.5A Capacity | by Wurth
Brand: Wurth
SKU: 55520421
Alternatively Known As: Deutsch DTM Connector Housing, DTM Plug Housing, Sealed Electrical Connector Housing
Technical Specifications
- Material: Thermoplastic plastic
- Temperature resistance: -55 to 125 °C
- Maximum current: 7.5 A continuous
- Accepts size 20 contacts
- Latched mating wedgelocks for secure connection
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections for protection against contaminants
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous capacity
- Proven industry reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial electrical systems
- Environments needing reliable, sealed electrical connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from connector failures
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Plug Housing Deutsch DTM 1 PCS is available now for immediate purchase. Ideal for OEM and industrial applications requiring sealed electrical connections.
