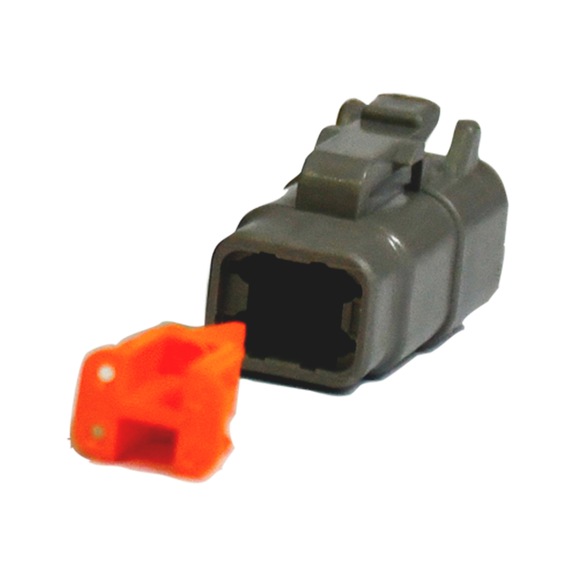

Plug Housing Deutsch DTM | IP67 Rated | 4 Contacts | Thermoplastic Material | by Wurth
The Plug Housing Deutsch DTM is designed for reliable, environmentally sealed electrical connections, featuring IP67 protection against dust and moisture. With a durable thermoplastic construction and 4 contacts capable of handling 7.5A continuous current, it's perfect for OEM applications in automotive and industrial settings, ensuring long-lasting performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug Housing Deutsch DTM | IP67 Rated | 4 Contacts | Thermoplastic Material | by Wurth
Brand: Wurth
SKU: 55520441
Alternatively Known As: Deutsch DTM Connector Housing, DTM Plug Housing, Wurth DTM Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 4
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max. current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections for protection against dust and moisture
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous capacity
- Proven industry reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and electrical safety.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Environments needing IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, reducing failure rates and waste
- Durable thermoplastic material extends product lifespan
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Plug Housing Deutsch DTM 1 PCS is available now for immediate purchase. Ideal for OEM and industrial applications requiring robust, sealed electrical connections.
