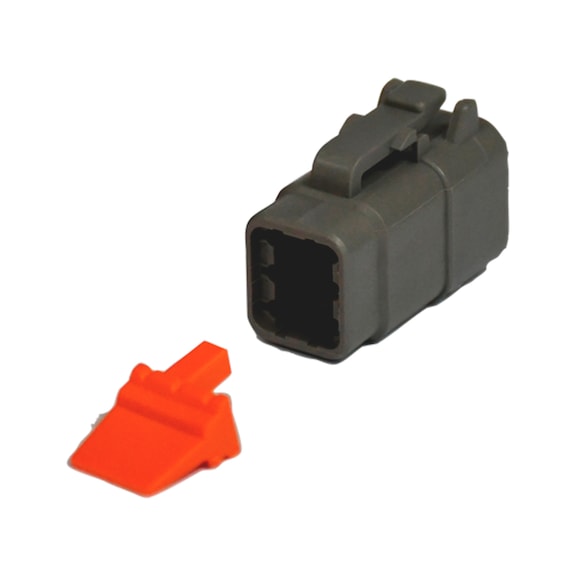

Plug Housing Deutsch DTM | IP67 Rated | 6 Contacts | Thermoplastic | by Wurth
The Plug Housing Deutsch DTM is designed for reliable, environmentally sealed electrical connections, featuring 6 contacts and an IP67 rating for protection against dust and moisture. Ideal for OEM applications in automotive and industrial equipment, this thermoplastic housing ensures durability and safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug Housing Deutsch DTM | IP67 Rated | 6 Contacts | Thermoplastic | by Wurth
Brand: Wurth
SKU: 55520461
Alternatively Known As: Deutsch DTM Connector Housing, DTM Plug Housing, Sealed Electrical Connector Housing
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 6
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 50mm x 40mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh environments
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous capacity
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and electrical safety.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment
- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Plug Housing Deutsch DTM 1 PCS is available now for immediate purchase. Ideal for OEM and industrial applications requiring sealed electrical connections.
