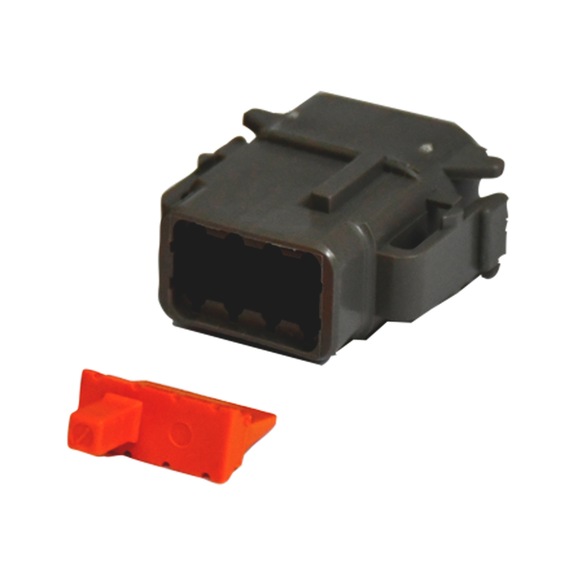

Plug Housing Deutsch DTM | IP67 Rated | 8 Contacts | Environmentally Sealed | by Wurth
The Plug Housing Deutsch DTM is designed for reliable electrical connections in harsh environments, featuring 8 contacts and an IP67 rating for superior protection against dust and moisture. Ideal for OEM applications and industrial equipment, this thermoplastic housing ensures durability and integrity in outdoor installations, making it a perfect choice for automotive and industrial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug Housing Deutsch DTM | IP67 Rated | 8 Contacts | Environmentally Sealed | by Wurth
Brand: Wurth
SKU: 55520481
Alternatively Known As: Deutsch DTM Connector Housing, DTM Plug Housing, Sealed Electrical Connector Housing
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 8
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 50mm x 40mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh environments
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous capacity
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment
- Outdoor and harsh environment electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Plug Housing Deutsch DTM 1 PCS is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
