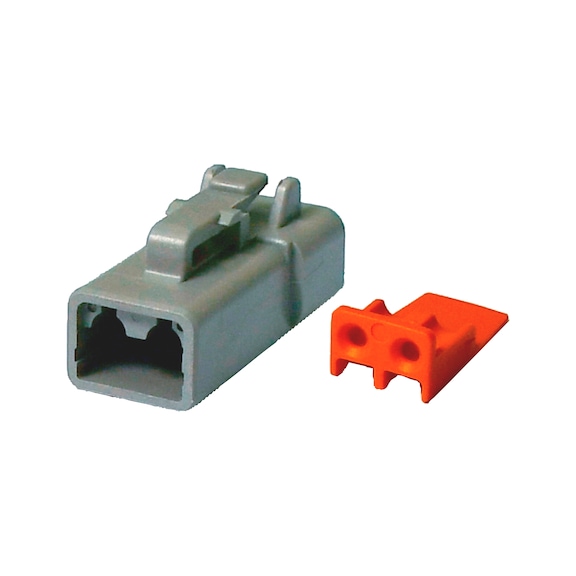

Plug Housing Deutsch DTP062S | 2-Pin Sealed Connector | 14 AWG Compatibility | Environmentally Sealed | by Wurth
The Plug Housing Deutsch DTP062S is a reliable 2-pin sealed connector designed for OEM applications and industrial wiring. With a temperature resistance of -55 to 125 °C and a maximum current capacity of 25 A, it ensures secure and environmentally sealed connections. Ideal for automotive and industrial equipment, this connector is built from durable thermoplastic material, enhancing longevity and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug Housing Deutsch DTP062S | 2-Pin Sealed Connector | 14 AWG Compatibility | Environmentally Sealed | by Wurth
Brand: Wurth
SKU: 55520221
Alternatively Known As: Deutsch DTP Connector Housing, DTP062S Plug Housing, 2-Pin Sealed Connector
Technical Specifications
- Material: Thermoplastic plastic
- Temperature resistance: -55 to 125 °C
- Maximum current: 25 A
- Wire size compatibility: 14 AWG
- Number of pins: 2
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections for protection against contaminants
- Latched mating Wedgelock connection ensures secure contact alignment and retention
- Accepts size 12 contacts with 25A continuous current capacity
- Proven industry reliability
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and electrical safety.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Environments needing reliable, sealed electrical connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, enhancing product longevity and reducing waste
- Durable thermoplastic material supports long-term use and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
The Wurth Plug Housing Deutsch DTP PLGHSNG PLUG DTP062S 2PIN 14AWG is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
