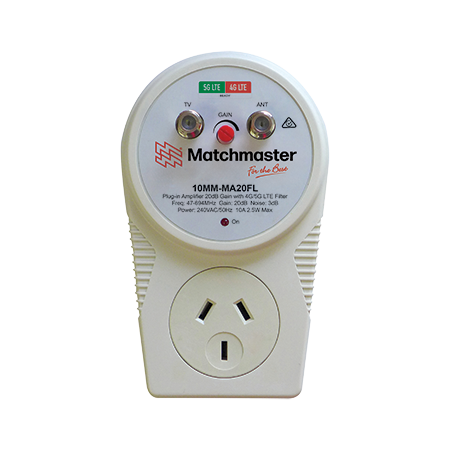

Plug-in Amplifier 20dB Gain | 4G/5G LTE Filter | Compact Design by Matchmaster

SKU: 10MM-MA20FL
$167.80 List price: $203.10
+
Plug-in amplifier with 20dB gain and integrated 4G/5G LTE filter—ideal for enhancing mobile signal in homes and offices. Built for easy installation, with compact design and energy-efficient operation.

Product Name/Title: Plug-in Amplifier 20dB Gain with 4G/5G LTE Filter

Brand: Matchmaster

SKU: 10MM-MA20FL

Alternatively Known As: TV Signal Booster, 4G/5G Filtered Amplifier, Plug-in TV Amplifier, LTE Filter Amplifier

Technical Specifications
  • Frequency Range: 40-694MHz
  • Gain: 20dB variable
  • Maximum Output: 90dBuV
  • Filter: 4G/5G LTE low pass 694MHz

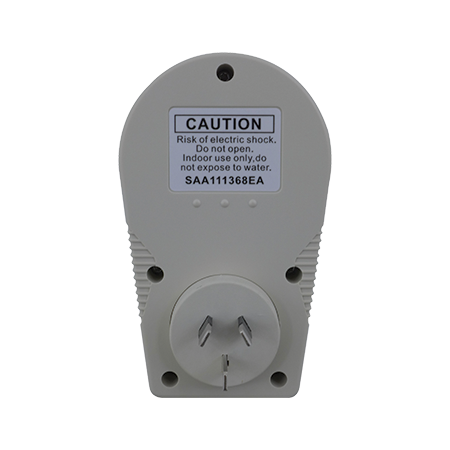

  • Power: Mains powered with piggyback power connection

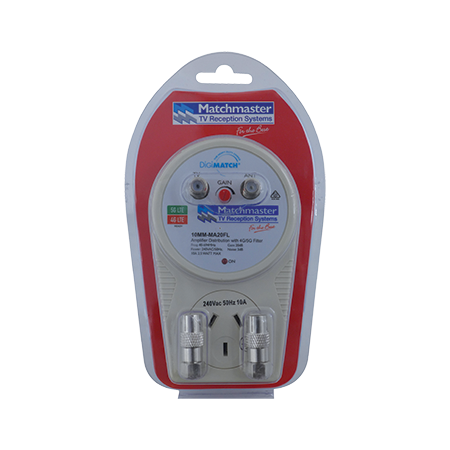

  • Connectors: ‘F’ type male to PAL (IEC) female included
  • Dimensions (H x L x W): 40mm x 90mm x 60mm
  • Weight: 0.2 kg
Key Features
  • Plug-in TV amplifier 40-694MHz with 20dB gain
  • 4G/5G LTE filter low pass 694MHz
  • 20dB variable gain adjustment for optimal signal level
  • Maximum output 90dBuV
  • Boosts FM as well as TV signal
  • Piggyback mains power connection to retain power point
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal signal setup and electrical safety.
Applications
  • Residential: Boost TV signal for single TV or set top box
  • Commercial: Small apartments or offices requiring signal amplification
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves signal quality reducing need for multiple devices and waste
  • Energy-efficient plug-in design minimizes power consumption
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster Plug-in Amplifier 20dB Gain with 4G/5G LTE Filter is available now for immediate purchase. Ideal for residential and small commercial applications requiring signal boost with LTE filtering.

Brochure (10mm-ma20fl_brochure.pdf, 489 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
