Plug-in Microwave Sensor for Battens | 360° Detection | Up to 15m Range | Adjustable Brightness by Lawell Lightning
Plug-in microwave sensor with 360° detection and up to 15m range—ideal for automating lighting in commercial, industrial, and residential spaces. Built for energy efficiency, with adjustable brightness and smart lux detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plug-in Microwave Sensor for Battens
Brand: Lawell Lightning
SKU: LWMS01
Alternatively Known As: ['Microwave motion sensor for batten', 'Plug-in batten sensor', 'Lawell batten sensor', 'Batten light motion sensor', 'Microwave occupancy sensor']
Technical Specifications
- Input Voltage: DC5-10V
- Dimming Options: No
- Detection Range: Up to 15m
- Detection Angle: 360°

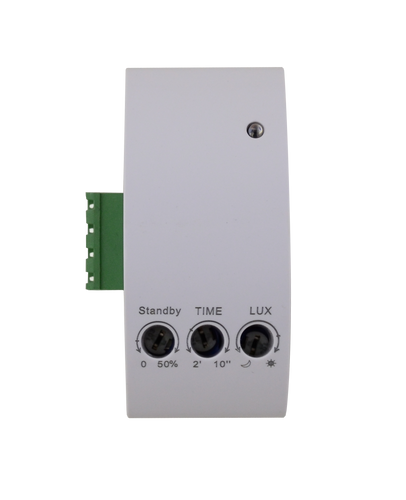

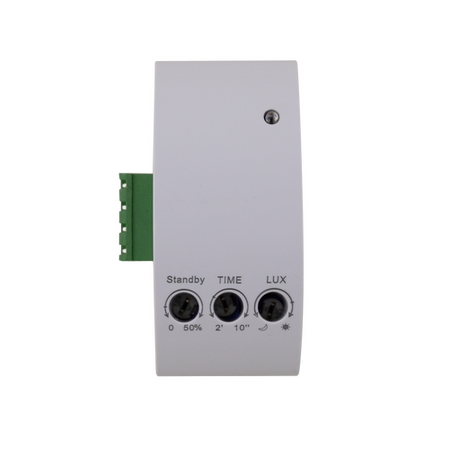

- Standby Light Brightness: 0-50% (adjustable)
- Full Brightness on Motion Detection
- Sensor Operating Interval: 2 seconds to 10 minutes (adjustable)
- Smart Lux Detection: Day and night modes
- Adjustable Light Start: <20 lux

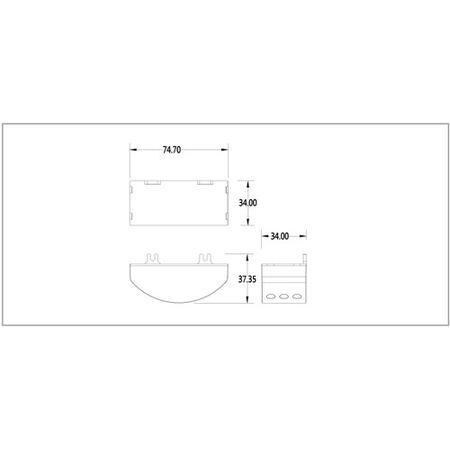

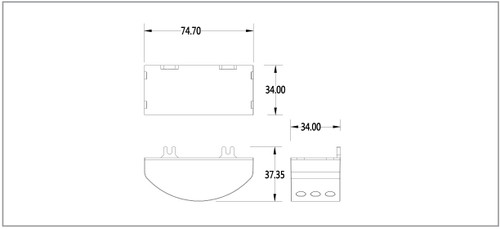

- Dimensions (H x L x W): 37mm x 75mm x 34mm
- Weight: 0.2 kg
Key Features

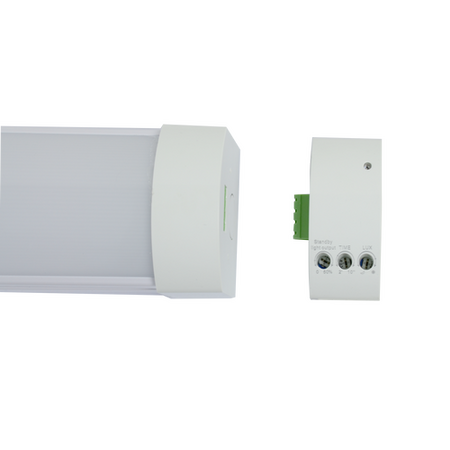

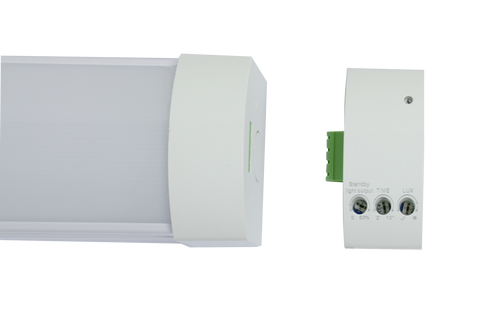

- Plug-in microwave sensor designed for B1802 and B1902 series battens
- Adjustable standby light operation (0-50% brightness)
- Full brightness activation upon motion detection
- Detection range up to 15m with 360° coverage
- Adjustable sensor operating interval (2 seconds to 10 minutes)
- Smart lux detection with day and night modes
- Adjustable light start threshold (<20 lux)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct integration with compatible batten lights and compliance with safety standards.
Applications
- Compatible with Lawell B1802 and B1902 batten light series
- Ideal for commercial, industrial, and residential lighting automation
- Corridors, car parks, warehouses, stairwells, and utility areas
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by activating lighting only when needed
- Supports lower carbon footprint through efficient lighting control
Warranty Information
1 year warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for automating lighting in commercial, industrial, and residential environments with Lawell B1802 and B1902 battens.
