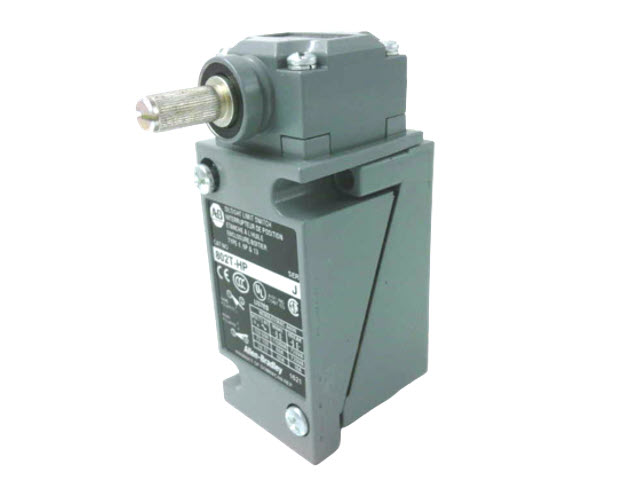

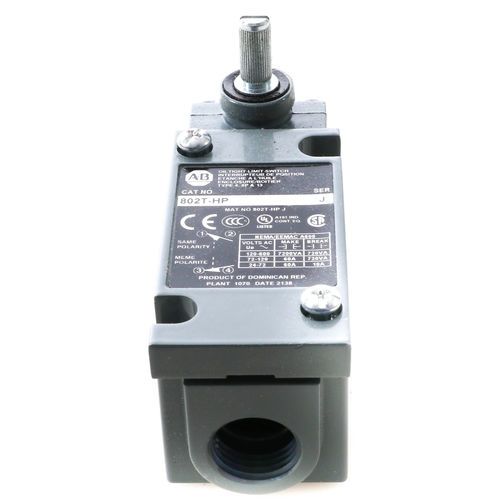

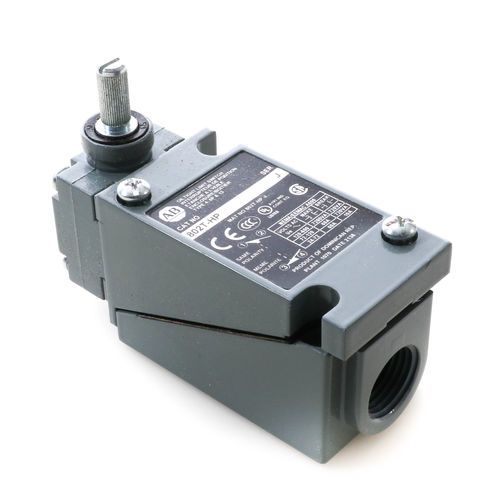

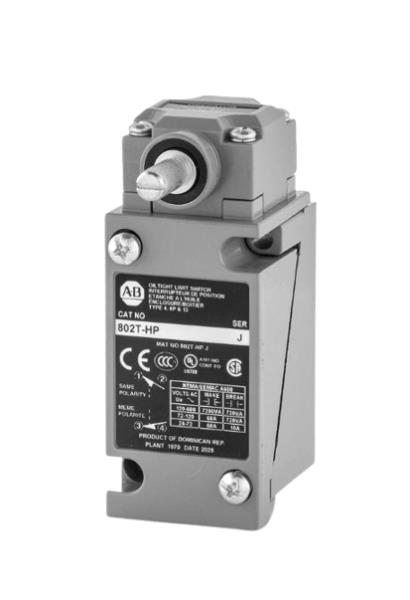

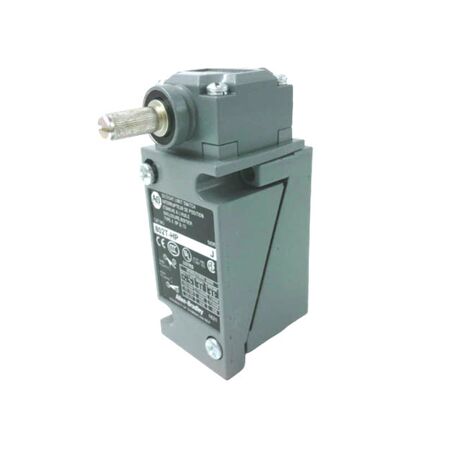

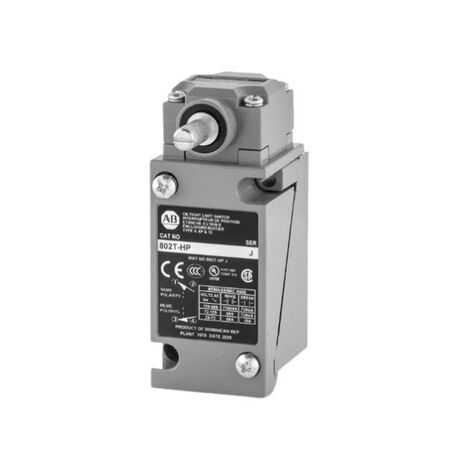

Product Name/Title: Allen-Bradley 802THP Plug-In Oiltight Limit Switch
Brand: Allen-Bradley
SKU: 802THP
Alternatively Known As: Rotary Lever Limit Switch, Oiltight Limit Switch, Plug-In Limit Switch, Allen-Bradley 802THP Switch
Technical Specifications
- Current Rating: 10 Amp
- Contact Type: Standard snap acting contacts
- Number of Circuits: 2
- Conduit Entry: 1/2" NPT
- Operating Direction: Clockwise and Counterclockwise
- Actuation: Rotary lever arm with spring return
- Mounting: Plug-in
- Dimensions (H x L x W): 100mm x 50mm x 70mm
- Weight: 0.3 kg
Key Features
- Plug-in design for easy installation and maintenance
- Oiltight construction for protection in harsh environments
- Rotary lever arm with spring return for reliable operation
- Two circuits with standard snap acting contacts
- Conduit entry with 1/2" NPT threading
- Operates in both clockwise and counterclockwise directions
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable oiltight design reduces need for frequent replacements, minimizing waste
- Supports efficient machinery operation, potentially reducing energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802THP Plug-In Oiltight Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
