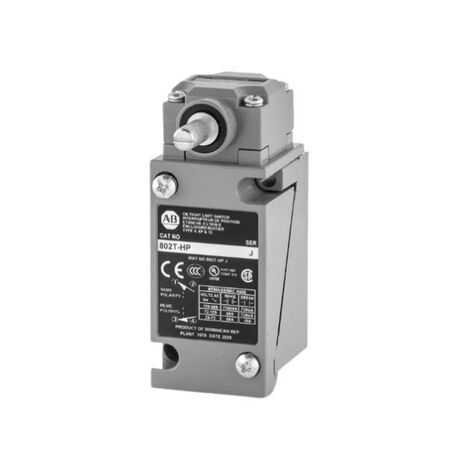

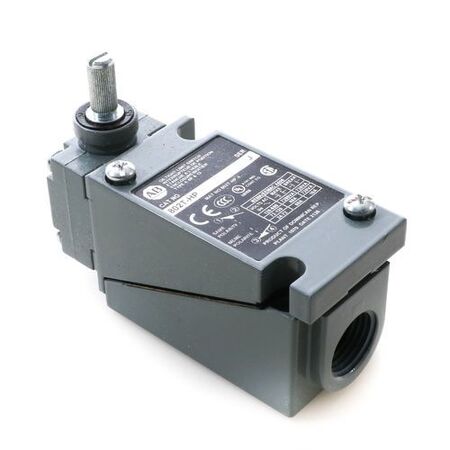

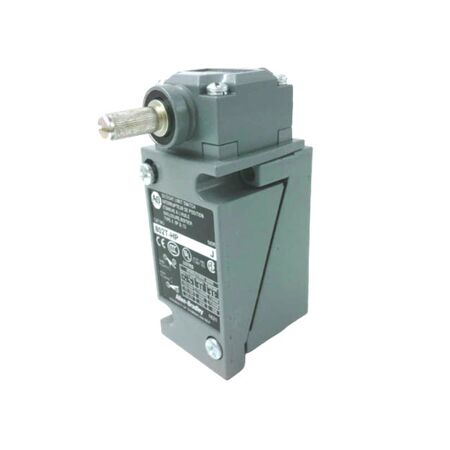

Plug-In Oiltight Limit Switch | 10 Amp Current Rating | Rotary Lever Arm | Oiltight Construction | by Allen-Bradley
The Plug-In Oiltight Limit Switch is designed for reliable operation in industrial automation, featuring a 10 Amp current rating and a rotary lever arm with spring return. Ideal for machinery position sensing and conveyor systems, this switch offers oiltight construction for protection in harsh environments, ensuring durability and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 10 Amp
- Contact Type: Standard snap acting contacts
- Number of Circuits: 2
- Conduit Entry: 1/2" NPT
- Operating Direction: Clockwise and Counterclockwise
- Actuation: Rotary lever arm with spring return
- Mounting: Plug-in
- Dimensions (H x L x W): 100mm x 50mm x 70mm
- Weight: 0.3 kg
Key Features
- Plug-in design for easy installation and maintenance
- Oiltight construction for protection in harsh environments
- Rotary lever arm with spring return for reliable operation
- Two circuits with standard snap acting contacts
- Conduit entry with 1/2" NPT threading
- Operates in both clockwise and counterclockwise directions
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable oiltight design reduces need for frequent replacements, minimizing waste
- Supports efficient machinery operation, potentially reducing energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802THP Plug-In Oiltight Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
