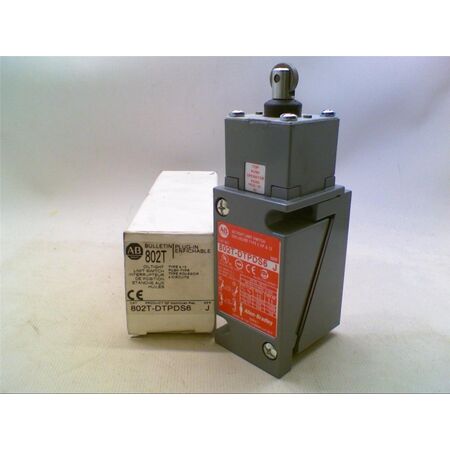

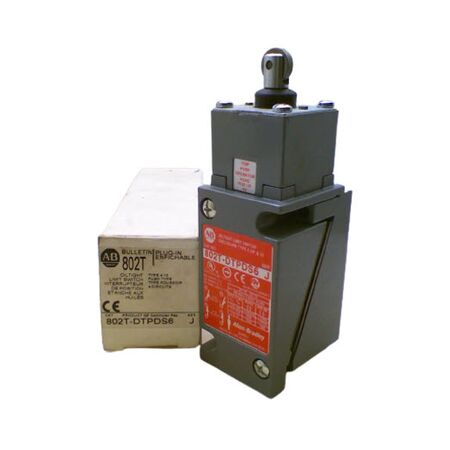

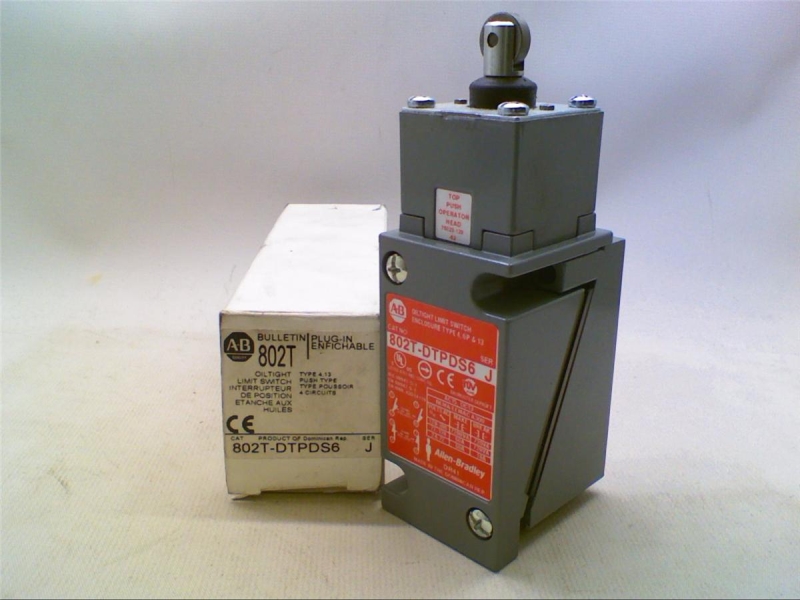

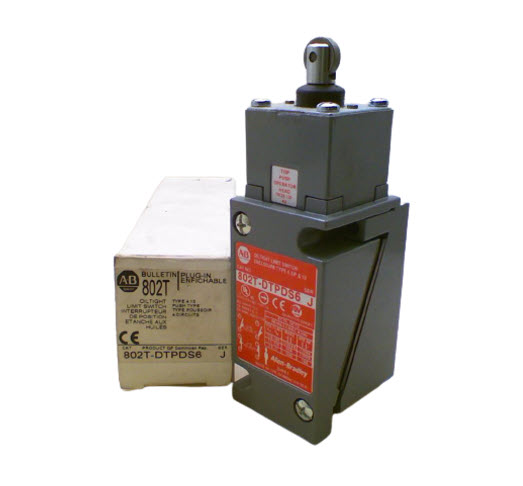

Product Name/Title: Allen-Bradley 802TDTPDS6 Plug-In Oiltight Limit Switch
Brand: Allen-Bradley
SKU: 802TDTPDS6
Alternatively Known As: Limit Switch Plug-In Oiltight 802TDTPDS6, Allen Bradley Limit Switch, Industrial Limit Switch
Technical Specifications
- Current Rating: 10 A
- Actuator Type: Top push roller
- Number of Circuits: 4
- Contact Configuration: 2 Normally Open (NO), 2 Normally Closed (NC)
- Operating Voltage: 24V DC at 1.1A
- Switching Action: Snap acting
- Thread Type: S6 metric
- Actuation: Push actuation with spring return
- Torque: 6.4 lb-in
- Full switch includes head and body
- Direct acting mechanism
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Plug-in design for easy installation and maintenance
- Oiltight metal construction for durability in harsh environments
- Top push roller actuator with spring return
- Supports 4 circuits with 2 NO and 2 NC contacts
- Low energy consumption at 24V DC @ 1.1A
- Snap acting mechanism for reliable switching
- Conduit entry with S6 metric thread
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Safety interlock applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces waste by extending product lifespan
- Low energy operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TDTPDS6 Plug-In Oiltight Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
