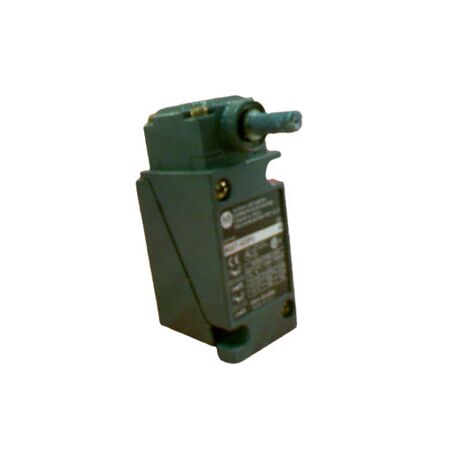

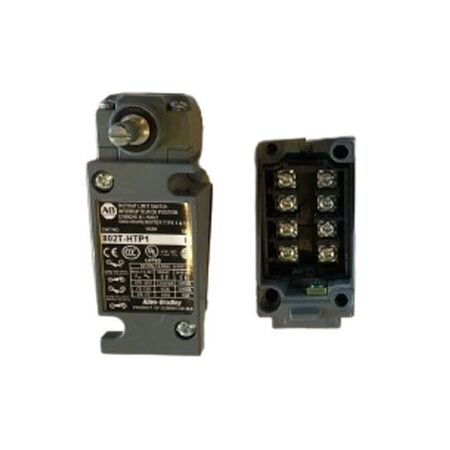

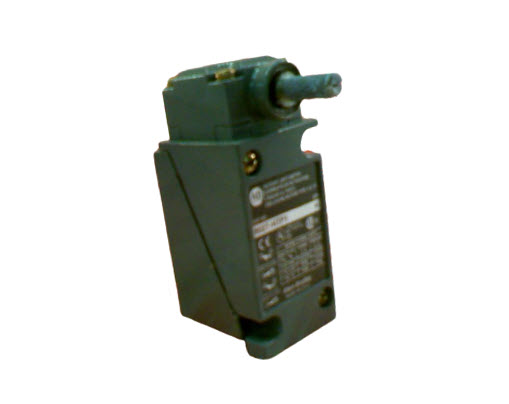

Plug-In Oiltight Limit Switch | Rotary Lever Arm | 2 NO / 2 NC Contacts | -18°C to 110°C | by Allen-Bradley
The Plug-In Oiltight Limit Switch is designed for reliable operation in industrial automation, featuring a rotary lever arm and a robust oiltight metal housing. With a temperature range of -18°C to 110°C and a snap acting mechanism, it’s perfect for machinery position sensing and conveyor systems. Built for durability and easy installation, this limit switch ensures efficient control in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Plug-in limit switch
- Contact Configuration: 2 Normally Open (NO) / 2 Normally Closed (NC)
- Operating Temperature Range: -18°C to 110°C
- Switch Action: Snap acting
- Operation Direction: Clockwise and counterclockwise
- Operating Angle: Low angle operation at 9 degrees
- Return Mechanism: Spring return
- Housing: Metal, oiltight
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Plug-in design for easy installation and maintenance
- Oiltight metal housing for durability in harsh environments
- Rotary lever arm operation with spring return
- 4 circuits with standard contacts (2 NO / 2 NC)
- Snap acting mechanism for reliable switching
- Operates in low temperature down to -18°C and high temperature up to 110°C
- Capable of clockwise and counterclockwise operation
- Low angle operation of 9 degrees
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical control systems to ensure safety and compliance.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces need for frequent replacements, minimizing waste
- Oiltight design prevents contamination, reducing environmental hazards
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802THTP1 Plug-In Oiltight Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
