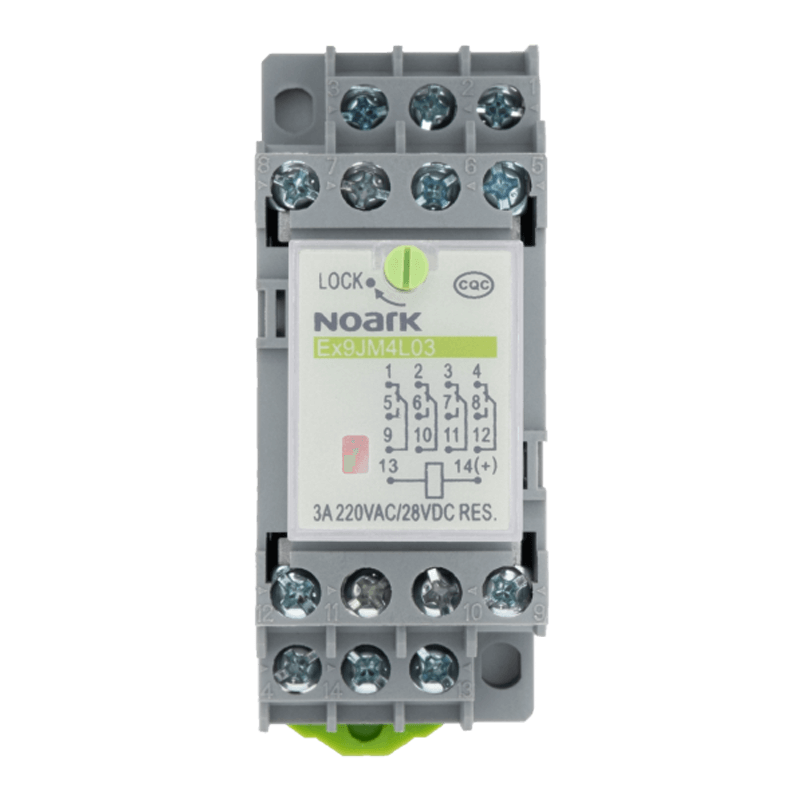

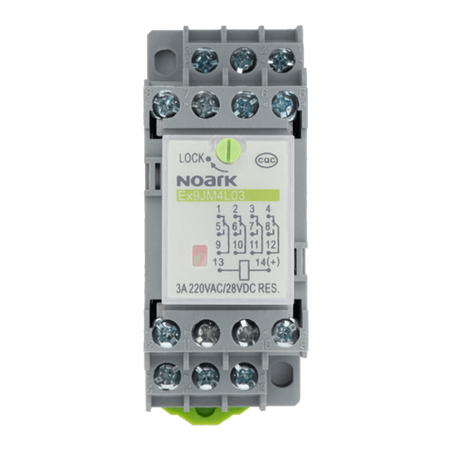

Plug-in Relay 20-24V AC/DC | 3A/5A/10A Rated Current | 2/4 Change-Over Contacts | Noark
Plug-in relay with 20-24V AC/DC operating voltage and rated current options of 3A, 5A, or 10A—ideal for industrial control systems and automation equipment. Built for reliable switching, featuring secure locking and status indicator for operational monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

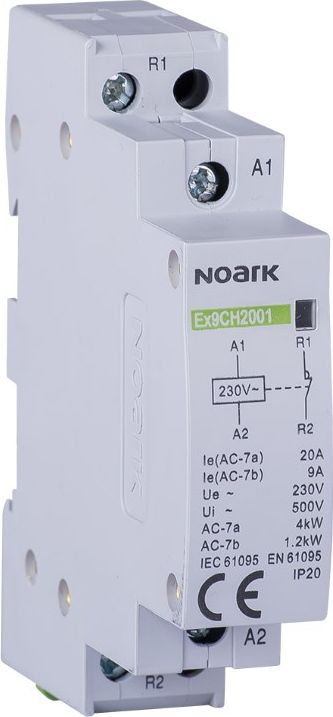

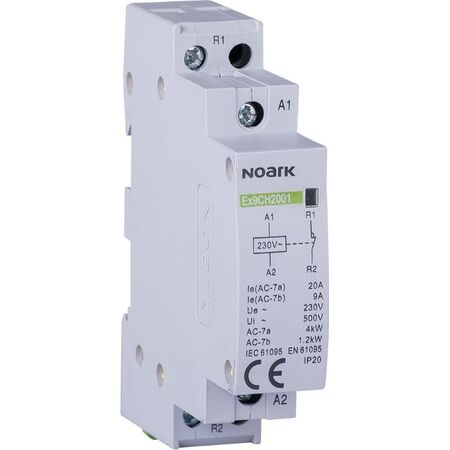

Product Name/Title: Ex9CH20 20 24V 50/60Hz
Brand: Noark
SKU: 102398
Alternatively Known As: Plug-in Relay Ex9JM, Ex9CH20 Relay, Noark Industrial Relay
Technical Specifications
- Rated current: 3A, 5A, or 10A
- Contact configuration: 2 change-over contacts (5A or 10A) or 4 change-over contacts (3A)
- Operating voltage: 20-24V AC/DC
- Frequency: 50/60Hz
- Locking button on plug for secure connection
- Status indicator included
- Dimensions (H x L x W): 85mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Meets requirements of IEC / EN 61810-1
- Rated current options: 3A, 5A, or 10A
- Available in versions with 2 change-over contacts (5A or 10A) and 4 change-over contacts (3A)
- Plugs and bases are offered separately
- Locking button on the plug for secure connection
- Status indicator for operational monitoring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical installations requiring relay switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compliant with IEC / EN standards ensuring energy-efficient operation
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Noark for specific warranty terms.
Available Now
The Noark Plug-in Relay Ex9JM Ex9CH20 20 24V 50/60Hz is available now for immediate purchase. Ideal for industrial and automation control applications.
