Plug-In Relay 7A 4CO | 120VAC Coil | Silver Contacts | Low Energy by NHP
Plug-in relay with 7A current and 120VAC coil—ideal for industrial automation and control panels. Built for reliable switching, with silver contacts and low energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

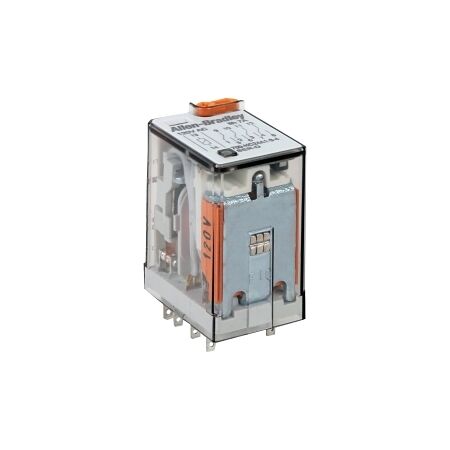

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 120VAC Coil Silver Contacts Low Energy Rating 10V 10mA
Brand: NHP
SKU: 700HC24A1
Alternatively Known As: 700-HC Relay, Plug In Relay, 7A Relay, 4CO Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 277 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Control Supply Voltage (AC 50/60 Hz): 120 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Material Contact: Silver nickel
- Degree of Protection: IP20
- Operating Temperature: -30 to 55 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Plug-in connection for easy installation.
- Rated for 7A at 120VAC coil voltage.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Low energy rating reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
