Plug In Relay 7A 4CO | 12V DC Coil | Gold Contacts | Low Energy by NHP
Plug in relay with 7A 4CO and 12V DC coil—ideal for industrial automation and control panels. Built for reliable switching, with gold contacts for low energy applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

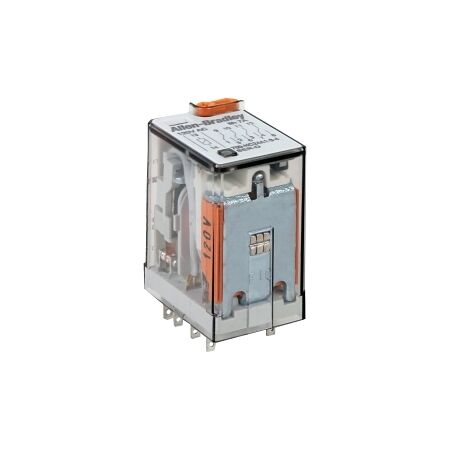

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 12V DC Coil Gold Contacts Low Energy Rating 10V 1mA
Brand: NHP
SKU: 700HC14Z12
Alternatively Known As: 700-HC Relay, Plug In Relay, General Purpose Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 277 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Control Supply Voltage (DC): 12 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Degree of Protection: IP20
- Material of Contact Surface: Gold
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Gold contacts for low energy rating and reliable performance.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
