Plug In Relay 7A 4CO | 240VAC Gold Contacts | Low Energy by NHP
Plug in relay with 7A current and 240VAC gold contacts—ideal for industrial automation and control panels. Built for low energy applications, with easy installation and LED status indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

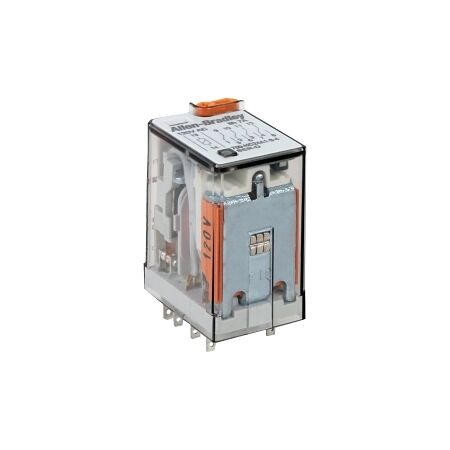

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 240VAC Gold Contacts Low Energy Rating 10V 1mA with PL
Brand: NHP
SKU: 700HC14A24L
Alternatively Known As: 700-HC Relay, Plug In Relay, General Purpose Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 277 V
- Number of Contacts: 4 CO
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 7 A
- Voltage Type for Actuating: AC
- Control Supply Voltage at AC 50 Hz: 240 V
- Control Supply Voltage at AC 60 Hz: 240 V
- Degree of Protection: IP20
- Material of Contact Surface: Gold
- Mechanical Life: 20,000,000 cycles
- Electrical Life: 100,000 cycles
- Operating Temperature: -30 to 55 °C
- Dimensions (H x L x W): 27.7mm x 37.2mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with gold contacts for low energy rating.
- Plug-in connection for easy installation.
- LED indication for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
