Plug In Relay 7A 4CO | 240VAC Silver Contacts | Low Energy by NHP
Plug in relay with 7A current and 240VAC voltage—ideal for industrial automation and control panels. Built for reliable switching, with silver contacts and low energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

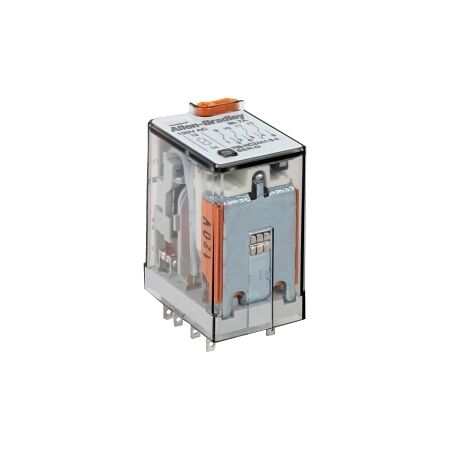

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 240VAC Silver Contacts Low Energy Rating 10V 10mA with PL
Brand: NHP
SKU: 700HC24A24L
Alternatively Known As: Plug In Relay, General Purpose Relay, 700-HC Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 277 V
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 7 A
- Voltage Type for Actuating: AC
- Control Supply Voltage at AC 50 Hz: 240 V
- Control Supply Voltage at AC 60 Hz: 240 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Material Contact: Silver nickel
- Degree of Protection: IP20
- Operating Temperature: -30 to 55 °C
- Dimensions (H x L x W): 27.7mm x 37.2mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- LED indication for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
