Plug-in Relay AC230V | 3, 5, or 10 A Rated Current | 2 & 4 Change-Over Contacts | Status Indicator by Noark
Plug-in relay with AC230V voltage rating and options for 3, 5, or 10 A rated current—ideal for industrial control systems and automation equipment. Built for reliable relay switching, featuring a locking button for secure connection and a status indicator for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

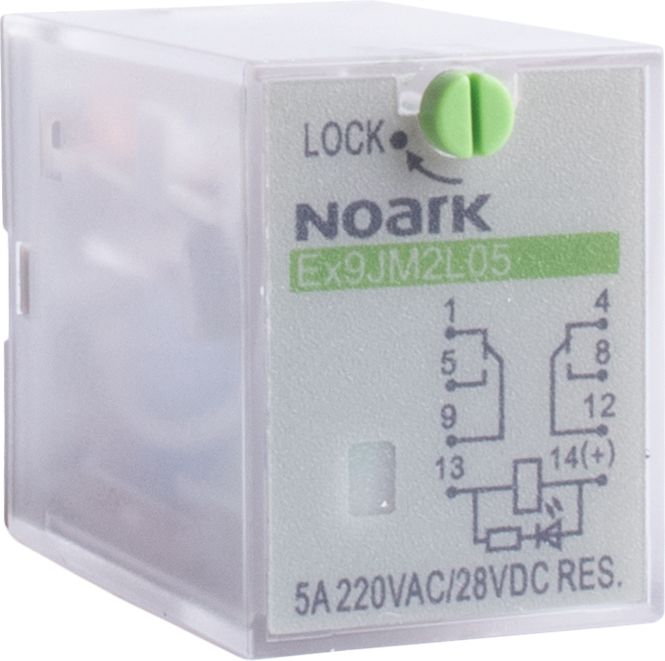

Product Name/Title: Ex9JM2L05 AC230V EU
Brand: Noark
SKU: 110313
Alternatively Known As: Plug-in Relay Ex9JM, Noark Ex9JM Relay, AC230V Plug-in Relay
Technical Specifications
- Rated current: 3, 5, or 10 A
- Contact configurations: 2 change-over contacts (5 or 10 A), 4 change-over contacts (3 A)
- Voltage rating: AC 230V
- Compliance: IEC / EN 61810-1
- Locking button on plug
- Status indicator included
- Dimensions (H x L x W): 85mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Meets requirements of IEC / EN 61810-1
- Rated current options: 3, 5, or 10 A
- Available in versions with 2 change-over contacts (5 or 10 A) and 4 change-over contacts (3 A)
- Plugs and bases are offered separately
- Locking button on the plug for secure connection
- Status indicator for operational feedback
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Industrial control systems
- Automation equipment
- Electrical installations requiring relay switching
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Compliant with IEC standards ensuring energy-efficient operation
- Designed for long service life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Noark for specific terms.
Available Now
The Noark Plug-in Relay Ex9JM Ex9JM2L05 AC230V EU is available for immediate purchase, ideal for industrial and automation control applications.
