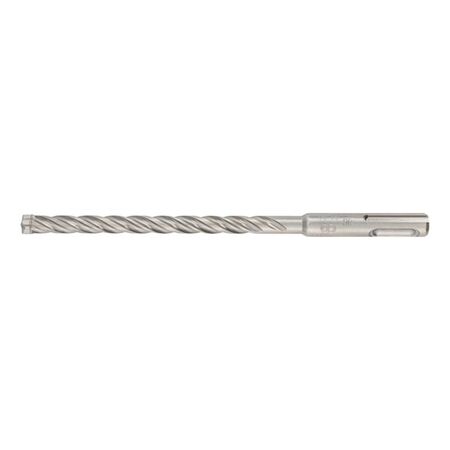

Plus Quadro L Hammer Drill Bit | 4 Cutting Edges | SDS-plus Compatible | 6.5mm Diameter | @Each by Wurth
The Plus Quadro L hammer drill bit is engineered for precision drilling in hard materials like concrete, featuring an innovative symmetrical head with four cutting edges for enhanced performance. Ideal for professional use with SDS-plus compatible hammer drills, this bit ensures efficient drilling with reduced jamming and optimal dust removal, making it perfect for construction and heavy-duty applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plus Quadro L Hammer Drill Bit | 4 Cutting Edges | SDS-plus Compatible | 6.5mm Diameter | @Each by Wurth
Brand: Wurth
SKU: 648076526
Alternatively Known As: Hammer drill bit, SDS-plus drill bit, Reinforced concrete drill bit, Carbide tip drill bit, Plus Quadro drill bit
Technical Specifications
- Drilling speed (point system): 3 of 4 points
- Smoothness of running (points system): 4 of 4 points
- Accuracy (point system): 4 of 4 points
- Reinforcement strength (points system): 4 of 4 points
- Service life (points system): 4 of 4 points
- Diameter (Ø): 6.5 mm
- Length: 265 mm
- Working length: 200 mm
- Number of cutting edges: 4 PCS
- Number of spirals: 4 PCS
- Tool holding device: Suitable for SDS-plus
- Dimensions (H x L x W): 6.5mm x 265mm x 6.5mm
- Weight: 0.3 kg
Key Features
- Innovative symmetrical head geometry with four cutting edges
- New multi-zone conveyor helix with optimized diameter for improved drill cuttings removal
- Solid carbide head for diameters 5-20 mm and one-piece carbide element for 22-32 mm
- Reinforcement margins prevent jamming or off-centre running when hitting reinforcements
- Enhanced tip geometry with power edges and additional dust grooves for faster drilling
- Alternating wide and narrow spiral flutes for speed and heavy duty designs
- Spiral with reinforced core, reduced weight, and increased spiral volume
- Special self-centring tip for precise spot drilling
Professional Installation Requirements
- Professional use recommended with SDS-plus compatible hammer drills for optimal performance and safety.
Applications
- Drilling in reinforcements and hard materials such as concrete
- Suitable for use with SDS-plus hammer drills
- Construction and building projects requiring precise and durable drilling
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Optimized drilling efficiency reduces energy consumption during use
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to the official warranty policy for details.
Available Now
The Wurth Plus Quadro L Hammer Drill Bit DRL HAM PLUS QL D65 L265 WL200MM is available now for immediate purchase. Ideal for construction and heavy-duty drilling applications.
