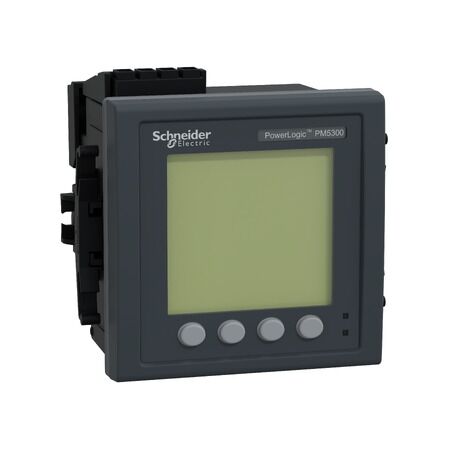

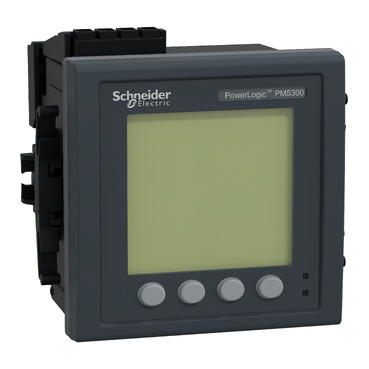

PM5320 Power Meter | 31st Harmonic Measurement | Class 0.5S Accuracy | Ethernet Communication | @Pack of 1 | by Clipsal
The PM5320 Power Meter is designed for precise energy monitoring, featuring 31st harmonic measurement and Class 0.5S accuracy. Ideal for commercial and industrial applications, it supports Ethernet communication for remote monitoring and multi-tariff capabilities. With a large backlit LCD display and DIN rail mounting, this power meter ensures easy installation and operation, making it perfect for energy management systems and power quality monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PM5320 Power Meter | 31st Harmonic Measurement | Class 0.5S Accuracy | Ethernet Communication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSEPM5320
Alternatively Known As: PM5320 Power Meter, Schneider PM5320, PowerLogic PM5320, Clipsal Power Meter, Energy Meter Ethernet, SCHMETSEPM5320
Technical Specifications
- Measurement: Active, reactive, and apparent energy
- Harmonic Analysis: Up to 31st harmonic
- Accuracy: Class 0.5S (IEC 62053-22)
- Display: Backlit LCD
- Communication: Ethernet (Modbus TCP/IP), RS485 (Modbus RTU)
- Mounting: DIN rail
- Power Supply: 100-415V AC / 125-250V DC
- Input: 1A/5A CT secondary
- Multi-tariff and multi-measurement support
- Dimensions (H x L x W): 96mm x 80mm x 96mm
- Weight: 0.5 kg
Key Features
- Measures active, reactive, and apparent energy
- 31st harmonic measurement for advanced power quality analysis
- Accuracy class 0.5S for precise energy monitoring
- Ethernet communication for remote monitoring and integration
- Multi-tariff and multi-measurement capabilities
- Large backlit LCD display for easy reading
- DIN rail mounting for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial electrical panels
- Energy management systems
- Sub-metering for buildings and facilities
- Power quality monitoring in manufacturing plants
- Data centers and server rooms
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy efficiency by providing detailed consumption data
- Supports reduction of energy waste through precise monitoring
- Facilitates compliance with energy management standards
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal PM5320 Power Meter 31stHar 0.5s Ethernet (SCHMETSEPM5320) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and management.
