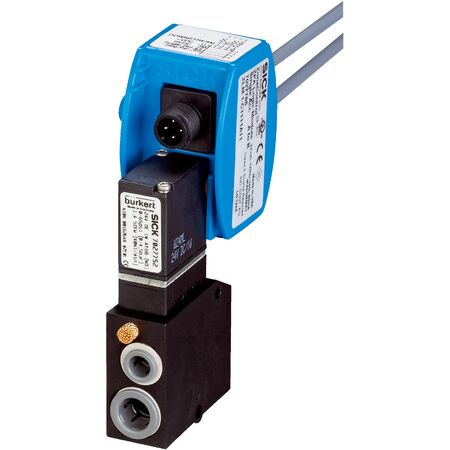

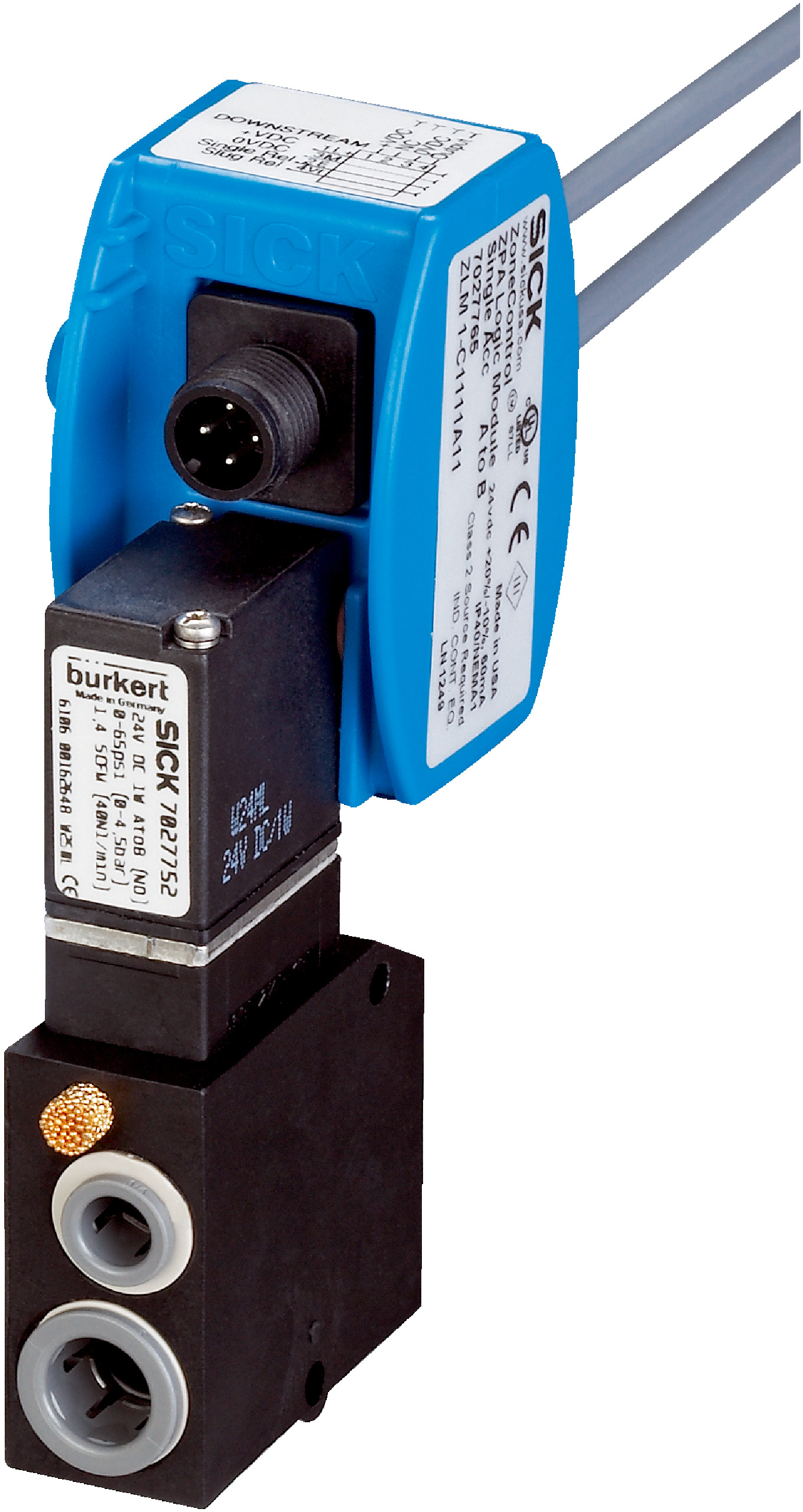

Pneumatic Control Valve ZLM1-B1612E42 | Supports 30-50 Sensors | IP40 Rated | by SICK
The ZLM1-B1612E42 pneumatic control valve is designed for efficient industrial automation, supporting approximately 30 to 50 sensors with a single accumulation logical operation. With a robust IP40 rated ABS housing and a wide operating temperature range of -10°C to +55°C, this valve is perfect for ZoneControl applications and compressed air systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Actuator: Pneumatic, valve on board
- Max. number of sensors: Approx. 30 to 50
- Logical principle of operation: Single accumulation
- Type of Release: Single release, block (slug) release
- Supply voltage UB: ≥ 21.6 V DC
- Ripple: < 5 V pp
- Current consumption: 60 mA
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. VS – 0.5 V / 0 V
- Output current Imax.: ≤ 100 mA
- Connection type: Cable with female connector, M12, 4-pin, 1.1 m
- Connection type for daisy chain: Cable with M12 male connector, 4-pin 1.2 m
- Cable material: Plastic, PVC
- Circuit protection: A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP40
- Ambient operating temperature: –10 °C to +55 °C
- Ambient temperature, storage: –25 °C to +75 °C
- Medium for valves: Compressed air or neutral gases filtered, non-lubricated or lubricated
- Design solenoid valve: 3/2-way valve
- Mode of operation solenoid valve: Air to Drive (NC)
- Connection type solenoid valve: Compressed air 2 x 8 mm diameter, output line 4 mm diameter
- Coil ratings: 24 V DC 1 W
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Operating pressure range: 2 bar to 8 bar
- Dimensions (H x L x W): 105mm x 74mm x 31mm
- Weight: 0.5 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design with Air to Drive (NC) mode
- 24 V DC coil rating with 1 W power consumption
- Connection via M12 4-pin cables for sensor and daisy chain
- Plastic ABS housing with IP40 enclosure rating
- Operating temperature range from -10°C to +55°C
- Operating pressure range from 2 bar to 8 bar
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance with operational standards.
Applications
- Industrial automation for pneumatic control
- ZoneControl applications requiring sensor accumulation
- Compressed air or neutral gas valve control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient pneumatic control reduces energy consumption in automation systems
- Durable ABS housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLM1-B1612E42 pneumatic valve is available for immediate purchase, ideal for industrial automation and ZoneControl pneumatic applications.
