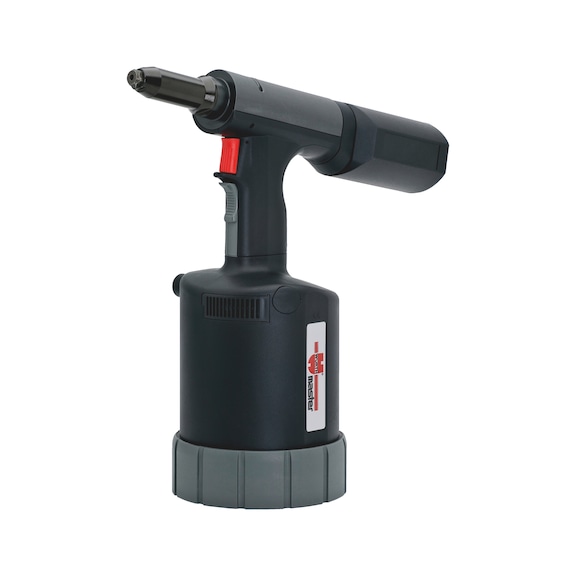

Pneumatic Rivet Gun | Patented Gripping Jaw System | Minimal Air Consumption | 14000 N Rivet Force | by Wurth
The Pneumatic Rivet Gun is designed for industrial riveting applications, featuring a patented gripping jaw system that prolongs the service life of clamping jaws and ensures a secure, non-slip grip on rivet pins. With minimal air consumption and a powerful 14000 N rivet setting force, this tool is perfect for assembly lines and maintenance workshops, providing a clean working environment without exhaust air.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pneumatic Rivet Gun | Patented Gripping Jaw System | Minimal Air Consumption | 14000 N Rivet Force | by Wurth
Brand: Wurth
SKU: 70393733
Alternatively Known As: Pneumatic Rivet Gun, Blind Rivet Tool, Air Riveter, Pneumatic Riveting Unit
Technical Specifications
- Min./max. operating pressure: 5-7 bar
- Stroke length: 25 mm
- Min./max. rivet diameter: 2.4-6.4 mm
- Max. mandrel diameter: 4.5 mm
- Air consumption per impact: 4.8 l
- Hose connection thread: 1/4 inch, 6 mm
- Rivet setting force: 14000 N
- Dimensions (H x L x W): 317mm x 291mm x 80mm
- Weight: 2.5 kg
Key Features
- Patented gripping jaw system significantly prolongs the service life of the clamping jaws.
- Secure, non-slip pulling grip of rivet pins.
- Minimal compressed air consumption.
- Prevents overloads during operation.
- Easy to use with lockable slide switch.
- Keeps hands warm during use.
- Clean working environment with no exhaust air in the working area.
Professional Installation Requirements
- Professional installation and maintenance by qualified personnel recommended to ensure safety and optimal performance.
Applications
- Industrial riveting applications
- Assembly lines requiring blind rivet processing
- Maintenance and repair workshops
- Manufacturing involving pneumatic riveting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Minimal compressed air consumption reduces energy use.
- No exhaust air in the working area improves workplace air quality.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth PNG 122 Pneumatic Riveting Tool is available now for immediate purchase. Ideal for industrial and workshop riveting applications.
