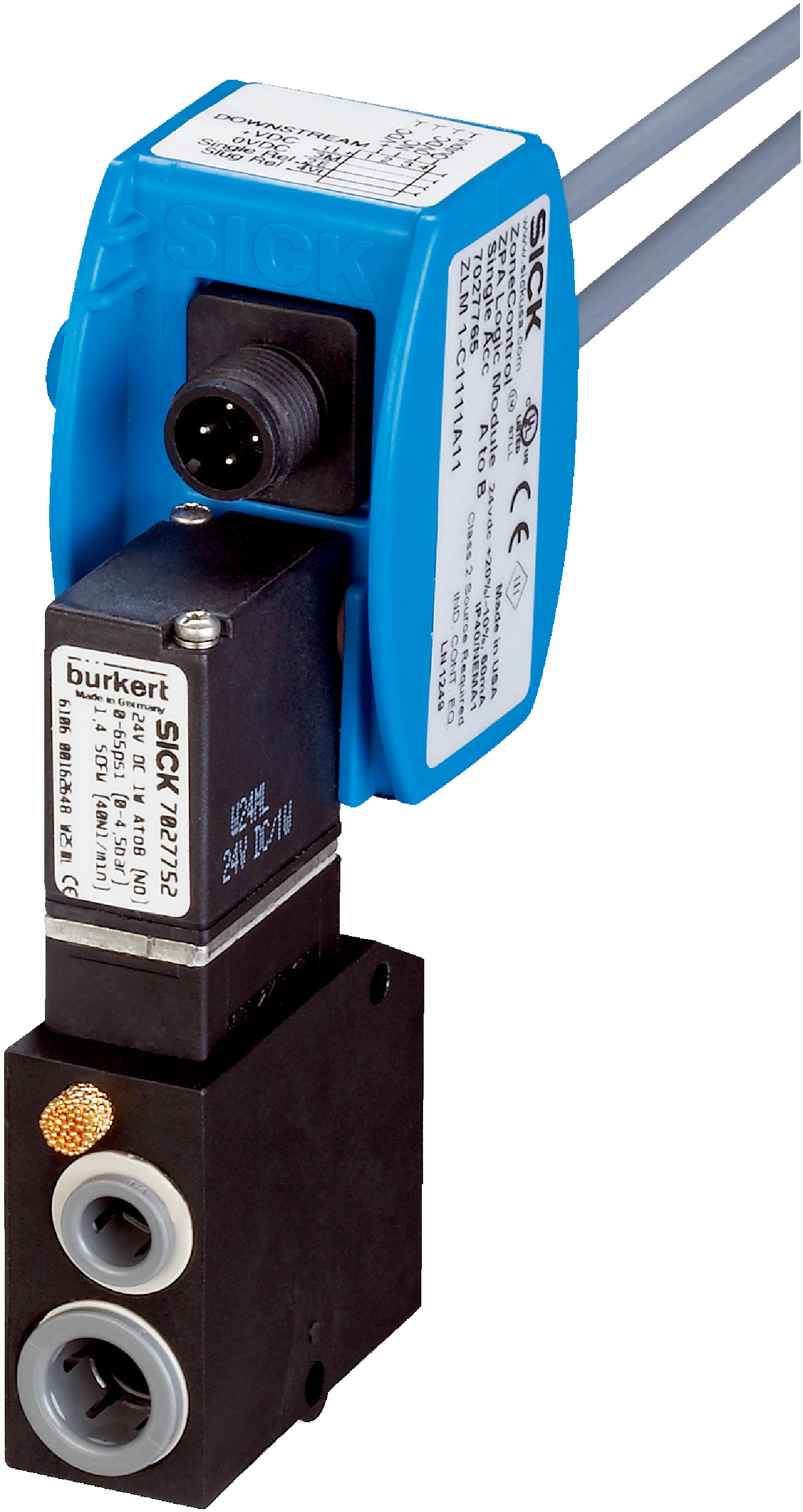

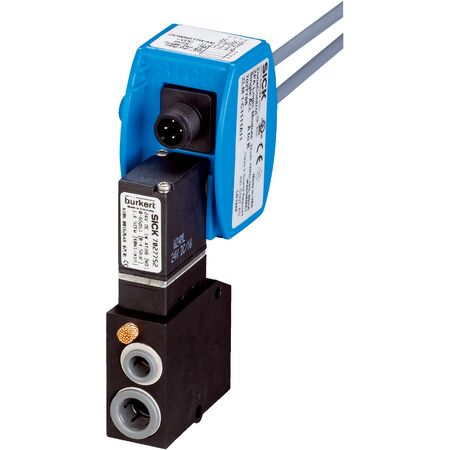

Pneumatic Sensor Block Controller ZLM1C2121S02 | Supports 30-50 Sensors | Fast Response Time 2.5 ms | IP40 Rated | by SICK
The Pneumatic Sensor Block Controller ZLM1C2121S02 is designed for efficient industrial automation, supporting approximately 30 to 50 sensors with a fast response time of 2.5 ms. Ideal for precise sensor management in pneumatic control systems, this durable ABS housing unit features an IP40 enclosure rating and operates within a temperature range of -10°C to +55°C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Max. number of sensors: Approx. 30 to 50
- Logical principle of operation: Block (slug) accumulation and release
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP, max output current ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. Vs – 0.5 V / 0 V
- Response time: 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Cable with female M8 4-pin connector (500 mm), daisy chain M12 male connector (1.2 m)
- Cable material: Plastic, PVC
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP40
- Shock and vibration resistance: According to IEC 68
- Ambient operating temperature: -10 °C to +55 °C
- Ambient storage temperature: -40 °C to +75 °C
- Solenoid valve coil ratings: 24 V DC, 1 W
- Operating pressure range: 0 to 4.5 bar
- Solenoid valve response time: Partially open 10 ms, Open 23 ms, Close 21 ms
- Dimensions (H x L x W): 110mm x 70mm x 30mm
- Weight: 0.3 kg
Key Features
- Supports approx. 30 to 50 sensors
- Block (slug) accumulation and release logic
- Switching output: PNP with max output current ≤ 100 mA
- Fast response time of 2.5 ms and switching frequency of 200 Hz
- Cable with female M8 4-pin connector and daisy chain M12 male connector
- Housing made of durable ABS plastic with IP40 enclosure rating
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -10°C to +55°C
- Integrated pneumatic solenoid valve with 24 V DC coil and air to drive (NC) mode
- Operating pressure range 0 to 4.5 bar with fast solenoid response times
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor and pneumatic systems to ensure safety and compliance.
Applications
- Industrial automation for sensor block accumulation and release
- ZoneControl applications requiring precise sensor management
- Pneumatic control systems with integrated solenoid valve
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient sensor management reduces energy consumption in automation systems
- Durable ABS housing extends product life reducing waste
- Low power consumption solenoid valve minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK ZLM1C2121S02 sensor controller is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
