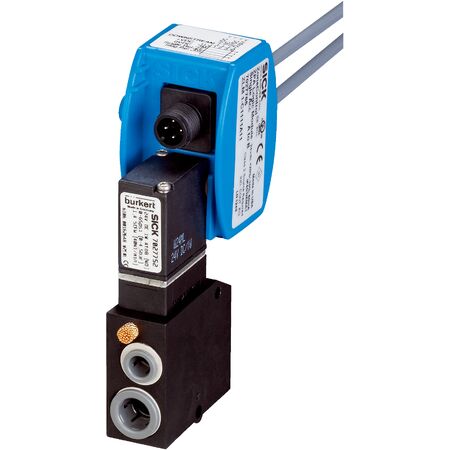

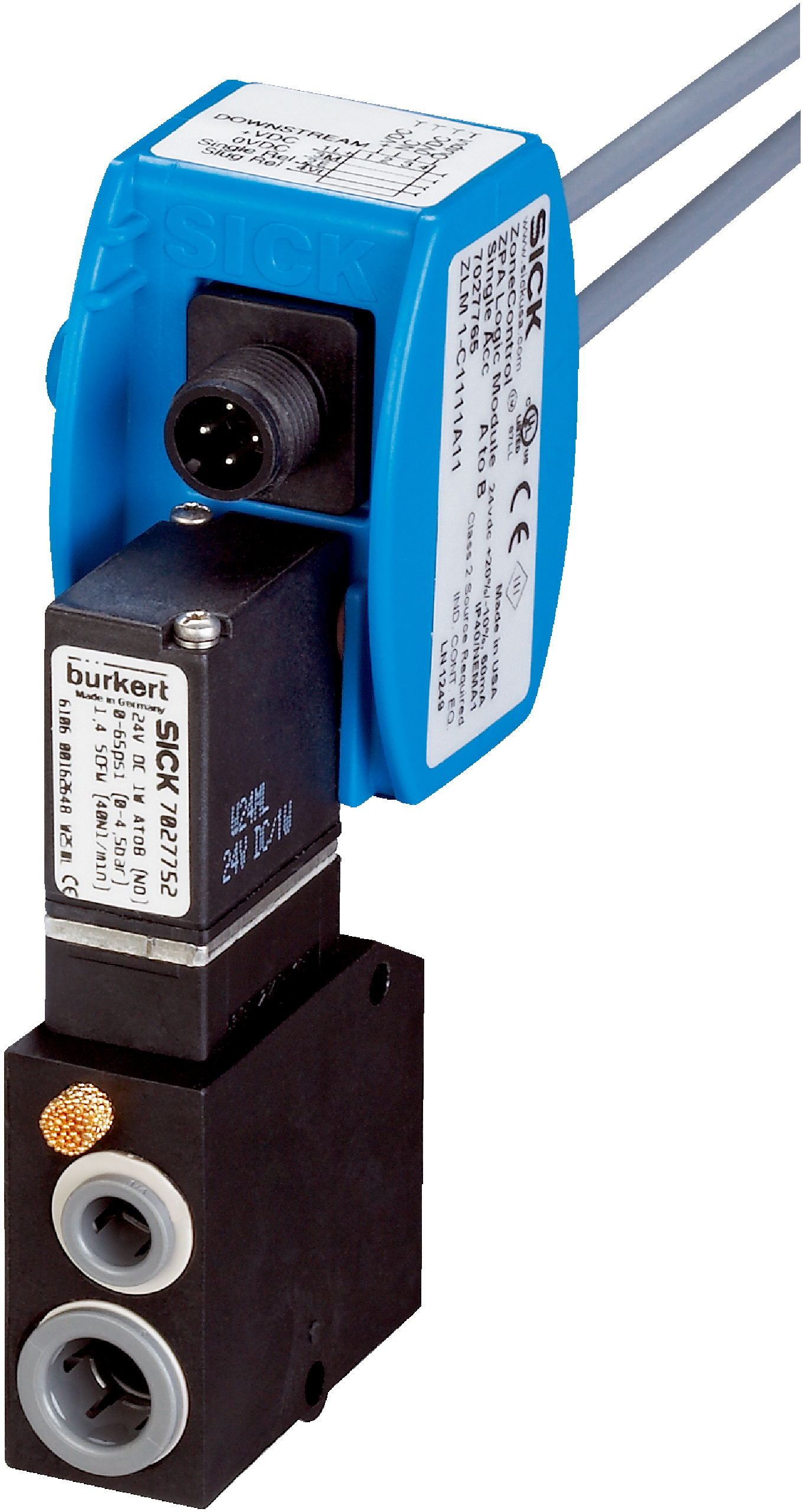

Pneumatic Valve with Onboard Actuator | 3/2-way Solenoid Design | IP40 Rated | by SICK
The Pneumatic Valve with Onboard Actuator is designed for efficient control in industrial automation systems. Featuring a 3/2-way solenoid valve design and an IP40 enclosure rating, it ensures reliable operation in ZoneControl applications. With a rapid response time of 2.5 ms and compatibility with compressed air or neutral gases, this valve is perfect for enhancing performance in manufacturing and processing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pneumatic Valve with Onboard Actuator | 3/2-way Solenoid Design | IP40 Rated | by SICK
Brand: SICK
SKU: 1052126
Alternatively Known As: Pneumatic Valve with Onboard Actuator, ZoneControl Valve, 3/2-way Solenoid Valve
Technical Specifications
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP with max output current ≤ 100 mA
- Response time: 2.5 ms switching, solenoid valve open 23 ms, close 21 ms
- Switching frequency: 200 Hz
- Connection: Cable with female M12 push-on connector, 4-pin, 500 mm and 1.2 m for daisy chain
- Cable material: Plastic, PVC
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP40
- Shock and vibration resistance: IEC 68 compliant
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases, filtered, non-lubricated or lubricated
- Design solenoid valve: 3/2-way valve
- Mode of operation solenoid valve: Air to Drive (NC)
- Connection type solenoid valve: Compressed air 3/8" diameter, control line 1/4" diameter
- Coil ratings: 24 V DC, 1 W
- Air flow rate: 40 Nl/min
- Ventilation capacity: 40 Nl/min
- Operating pressure range: 0 to 4.5 bar
- Dimensions (H x L x W): 110mm x 83mm x 31mm
- Weight: 0.3 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design with Air to Drive (NC) mode
- Response time of 2.5 ms for switching and 10-23 ms for solenoid valve
- Operating pressure range from 0 to 4.5 bar
- IP40 enclosure rating with shock and vibration resistance per IEC 68
- Cable with M12 push-on connectors for easy daisy chaining
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance.
Applications
- Industrial automation systems requiring pneumatic valve control
- ZoneControl applications in manufacturing and processing plants
- Compressed air or neutral gas control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic control reduces energy consumption in automation systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ZLM1-B1451A10 pneumatic valve is available for immediate purchase, ideal for industrial automation and ZoneControl applications.
