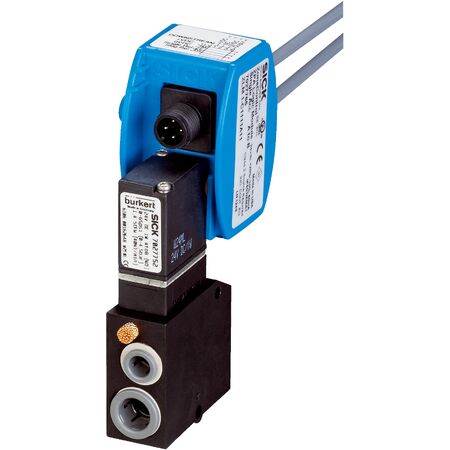

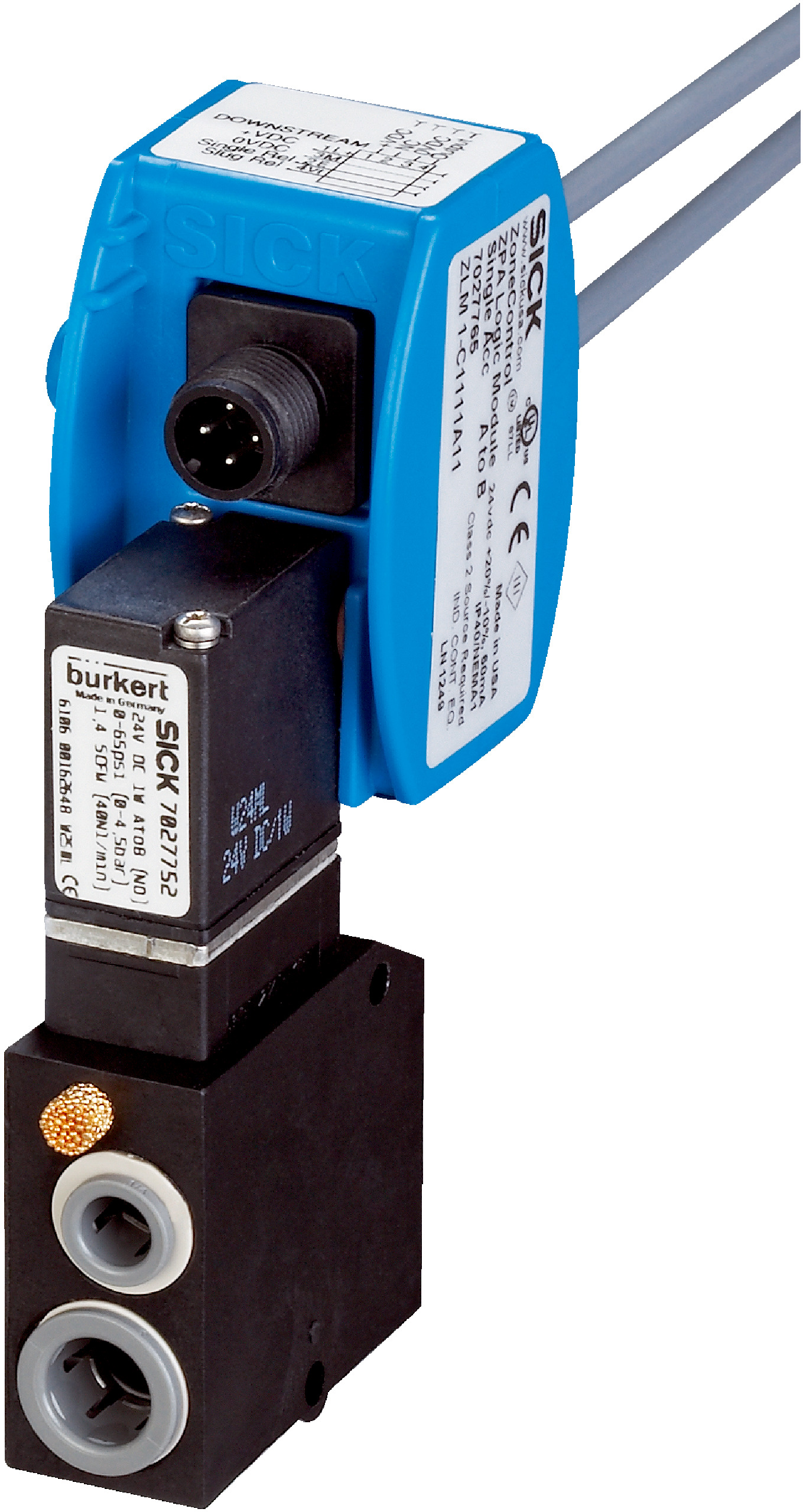

Pneumatic Valve with Onboard Actuator | IP40 Rated | Supports 30-50 Sensors | 3/2-Way Design | by SICK
The Pneumatic Valve with Onboard Actuator is designed for industrial automation systems, featuring an IP40 enclosure rating and the ability to support approximately 30 to 50 sensors. Built for precise pneumatic control applications, this valve ensures efficient operation with a temperature range of -10°C to +55°C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP with max output current ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 0.5 V / 0 V
- Connection type: Cable with female M8 connector (4-pin, 1.1 m) and M12 male connector (4-pin, 0.5 m)
- Circuit protection types: A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP40
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Medium for valves: Compressed air or neutral gases, filtered, non-lubricated or lubricated
- Solenoid valve design: 3/2-way valve
- Mode of operation solenoid valve: Air to Drive (NC)
- Connection type solenoid valve: Compressed air 2 x 8 mm diameter, output line 4 mm diameter
- Coil ratings: 24 V DC, 1 W
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Operating pressure range: 2 bar to 8 bar
- Dimensions (H x L x W): 105mm x 74mm x 31mm
- Weight: 0.5 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design
- Air to Drive (NC) mode of operation
- Compact dimensions: 31 mm x 105 mm x 74 mm
- IP40 enclosure rating for protection
- Operating temperature range from -10°C to +55°C
- Connection via M8 and M12 connectors with PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance with operational standards.
Applications
- Industrial automation systems
- Pneumatic control applications
- ZoneControl systems requiring precise valve actuation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient pneumatic control reduces energy consumption in automation systems
- Durable ABS plastic housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLM1-B1622E42 pneumatic valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
