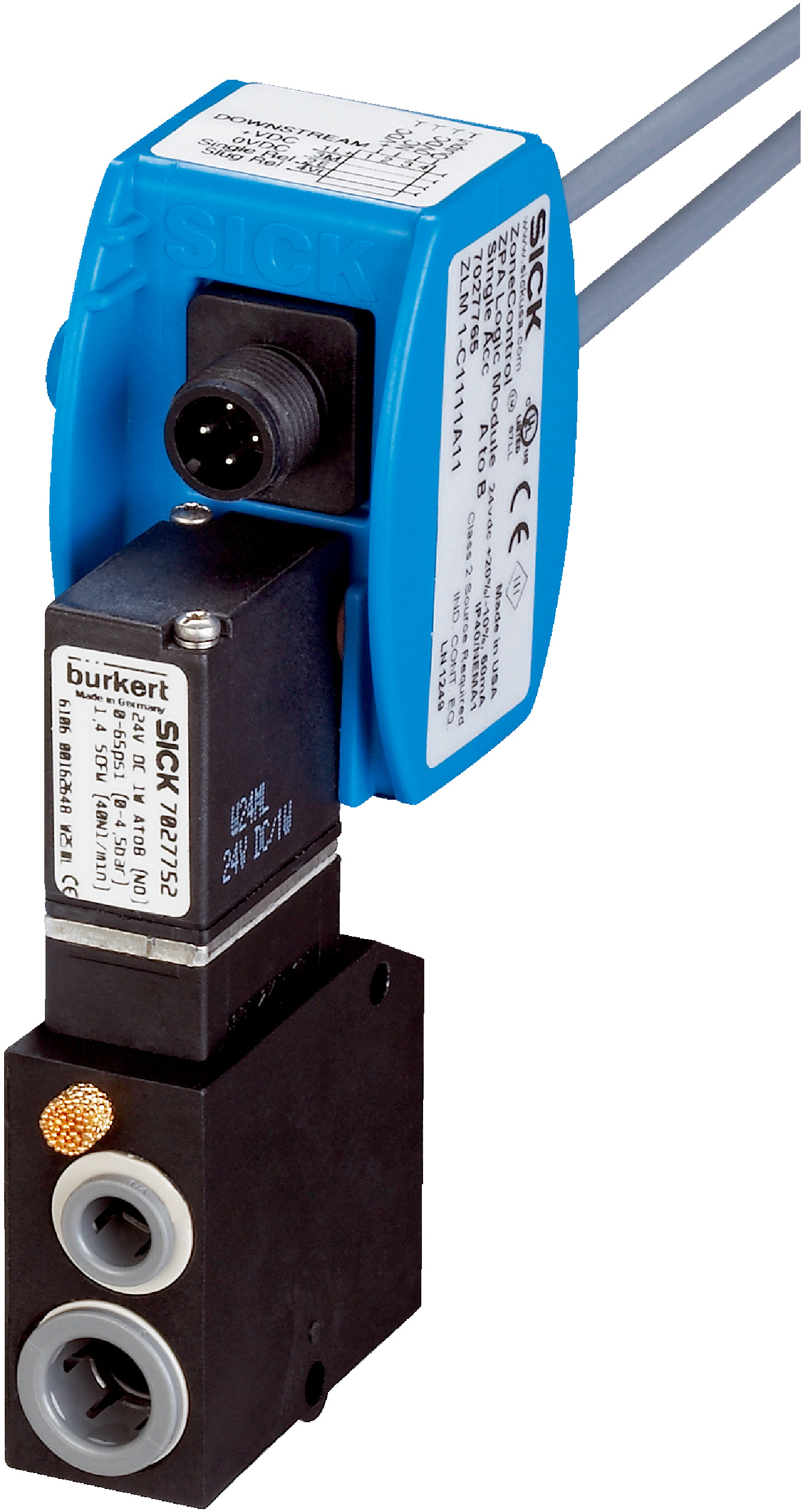

Pneumatic Valve with Onboard Actuator | IP40 Rated | Supports 30-50 Sensors | by SICK
The Pneumatic Valve with Onboard Actuator is designed for industrial automation systems, featuring a robust IP40 enclosure and the ability to support 30 to 50 sensors. Ideal for pneumatic control applications, this valve ensures efficient operation with a temperature range of -10°C to +55°C and a pressure range of 2 to 8 bar, making it perfect for various automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Connection type: Cable with female M12 4-pin connector, 1.1 m length
- Circuit protection: Types A, C, D
- Protection class: III
- Enclosure rating: IP40
- Ambient operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +75°C
- Medium for valves: Compressed air or neutral gases, filtered, lubricated or non-lubricated
- Solenoid valve coil rating: 24 V DC, 1 W
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Operating pressure range: 2 bar to 8 bar
- Dimensions (H x L x W): 105mm x 74mm x 31mm
- Weight: 0.5 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design
- Air to Brake (Normally Open) operation mode
- Cable with M12 4-pin connectors for easy daisy chaining
- Plastic ABS housing with IP40 enclosure rating
- Operating temperature range from -10°C to +55°C
- Operating pressure range from 2 bar to 8 bar
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance.
Applications
- Industrial automation systems
- Pneumatic control applications
- ZoneControl systems requiring pneumatic valve actuation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient pneumatic control reduces energy consumption in automation systems
- Durable ABS housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

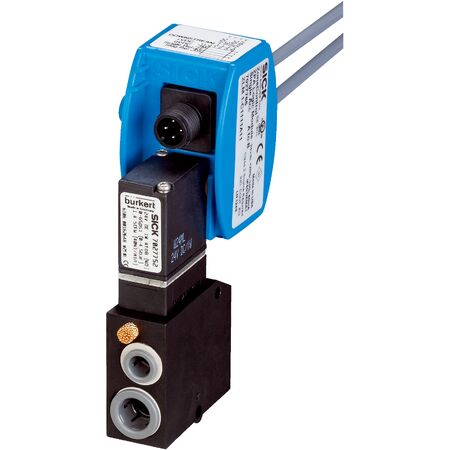

The SICK ZLM1-B1622E43 pneumatic valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
