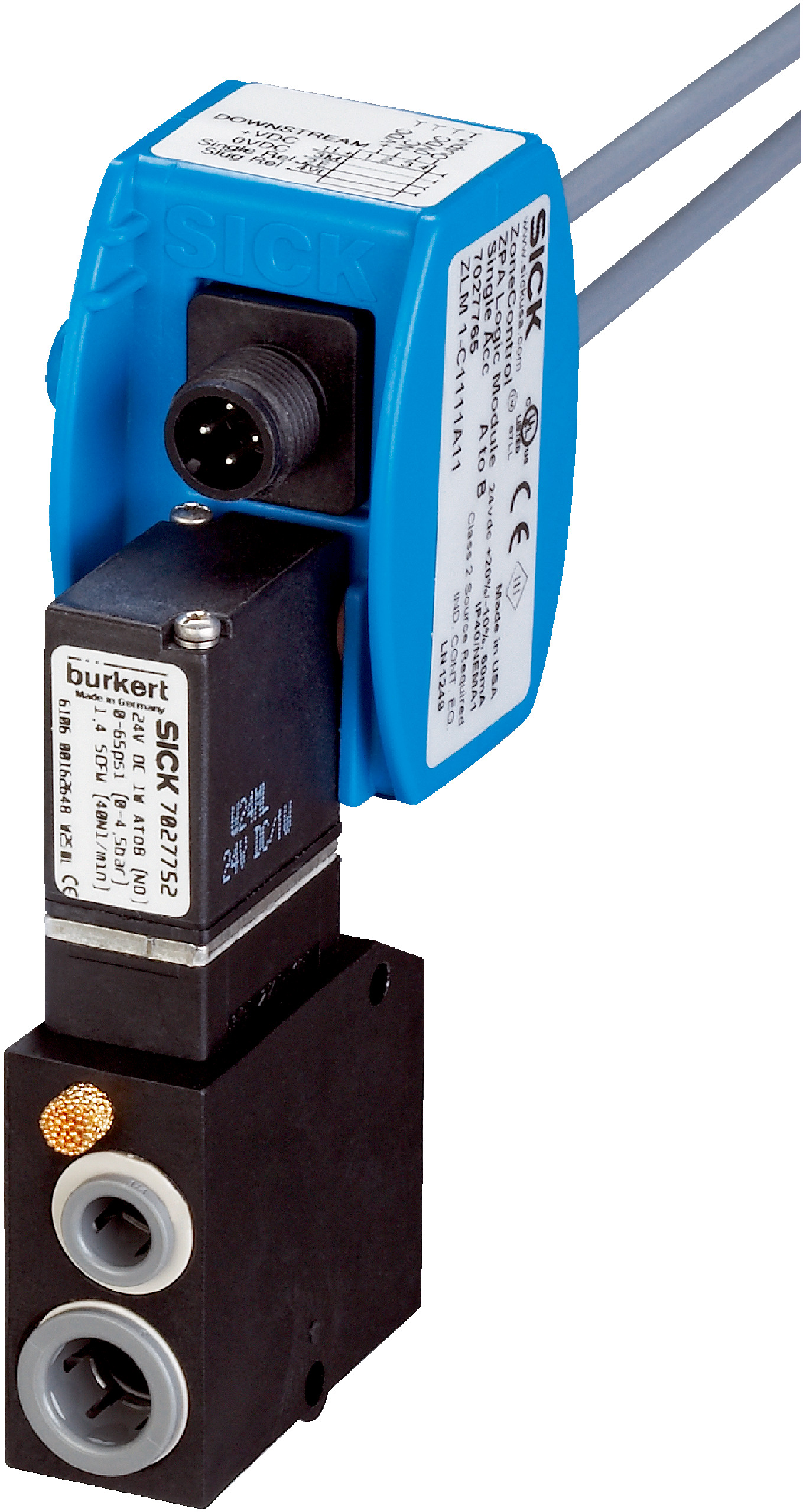

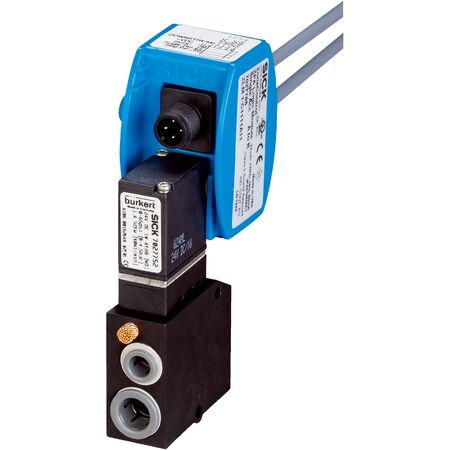

Pneumatic Valve Sensor Control | 3/2-Way Solenoid Design | IP40 Rated | by SICK
The Pneumatic Valve Sensor Control ZLM1-B1612E43 is designed for efficient pneumatic control in industrial automation. With a robust 3/2-way solenoid valve design and an IP40 enclosure rating, it operates effectively in environments ranging from -10°C to +55°C. Ideal for compressed air systems, this valve supports approximately 30 to 50 sensors, ensuring precise actuation and reduced air waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Connection: Cable with female M12 4-pin connector, 1.1 m length
- Circuit protection types: A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP40
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +75°C
- Medium for valves: Compressed air or neutral gases, filtered, non-lubricated or lubricated
- Solenoid valve design: 3/2-way valve
- Solenoid valve operation mode: Air to Brake (Normally Open)
- Solenoid valve connection: Compressed air 2 x 8 mm diameter, output line 4 mm diameter
- Coil ratings: 24 V DC, 1 W
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Operating pressure range: 2 bar to 8 bar
- Dimensions (H x L x W): 105mm x 74mm x 31mm
- Weight: 0.3 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design
- Air to Brake (Normally Open) operation mode
- Cable with M12 connectors for easy daisy chaining
- IP40 enclosure rating suitable for industrial environments
- Operating temperature range from -10°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance with standards.
Applications
- Industrial automation for pneumatic control
- ZoneControl applications requiring precise valve actuation
- Compressed air systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic control reduces compressed air waste
- Durable ABS housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLM1-B1612E43 pneumatic valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
