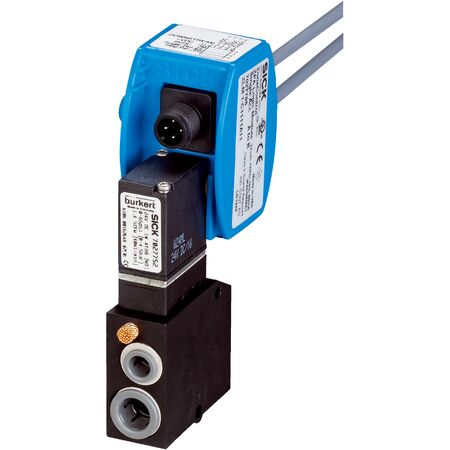

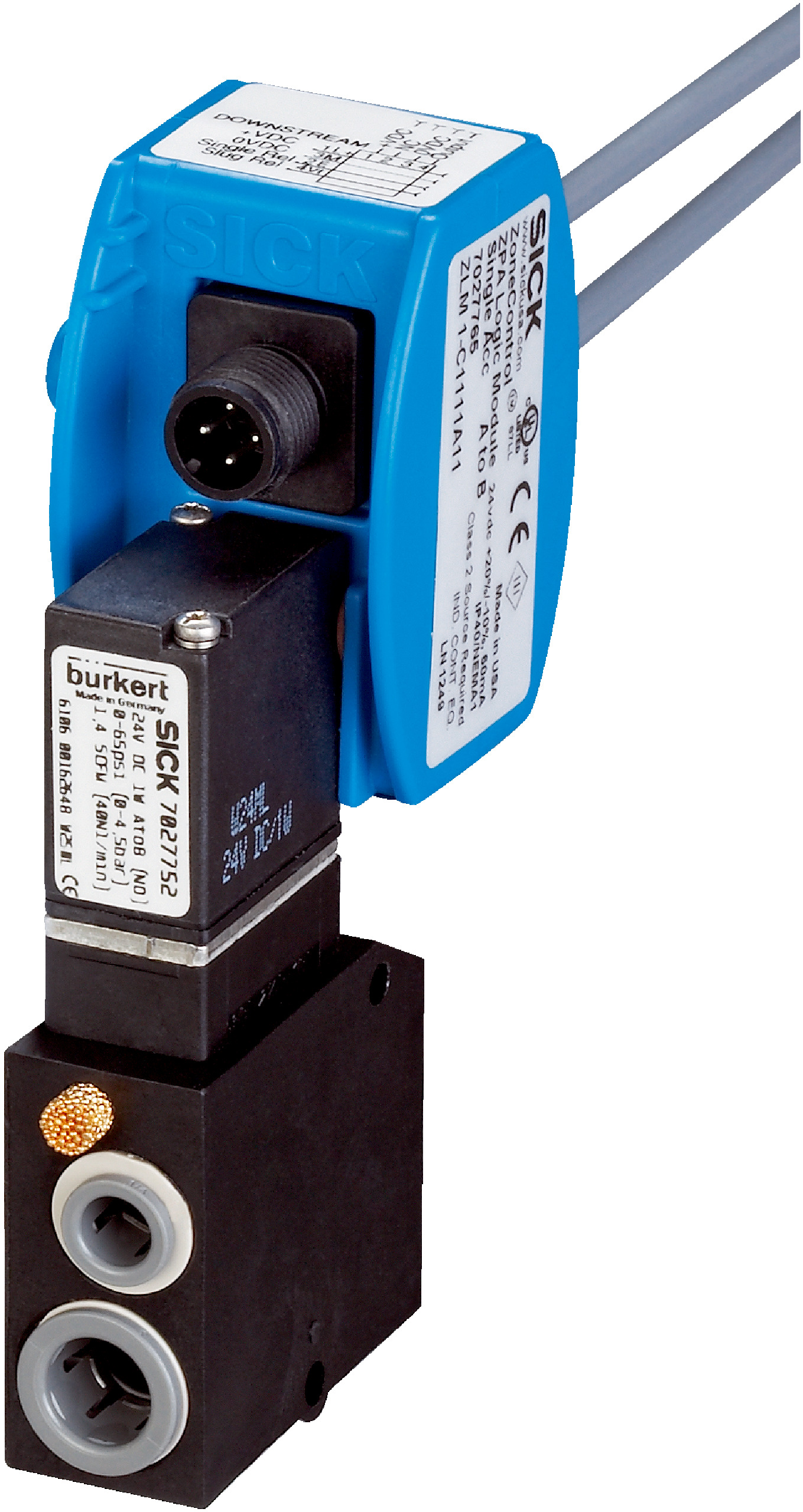

Pneumatic Valve Sensor Controller | Supports 30-50 Sensors | IP40 Rated | by SICK
The Pneumatic Valve Sensor Controller ZLM1-C1451A11 is designed for industrial automation, providing precise control for pneumatic valve applications. With a robust IP40 enclosure and the ability to support 30 to 50 sensors, it ensures reliable operation in demanding environments. Ideal for compressed air or neutral gas control systems, this actuator features a quick response time and is built for efficiency, reducing energy consumption in automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: ≥ 21.6 V DC
- Current consumption: 60 mA
- Switching output: PNP with max output current ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 0.5 V / 0 V
- Switching frequency: 200 Hz
- Connection type: Cable with female M12 push-on 4-pin, 500 mm and daisy chain cable 1.2 m
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic ABS
- Enclosure rating: IP40
- Ambient operating temperature: –10 °C to +55 °C
- Storage temperature: –40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases, filtered, non-lubricated or lubricated
- Coil ratings: 24 V DC, 1 W
- Air flow rate: 40 Nl/min
- Operating pressure range: 0 to 4.5 bar
- Response time solenoid valve: Partially open 10 ms, Open 23 ms, Close 21 ms
- Dimensions (H x L x W): 110mm x 70mm x 30mm
- Weight: 0.5 kg
Key Features
- Pneumatic actuator with valve on board
- Supports approx. 30 to 50 sensors
- Single accumulation logical operation
- Single release and block (slug) release types
- 3/2-way solenoid valve design with air to brake (NO) operation
- Response time of 2.5 ms for switching and 10-23 ms for solenoid valve
- Operating pressure range from 0 to 4.5 bar
- IP40 enclosure rating with shock and vibration resistance per IEC 68
- Connection via M12 push-on 4-pin cables with daisy chain capability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical systems to ensure safety and compliance.
Applications
- Industrial automation for pneumatic valve control
- ZoneControl applications requiring precise valve actuation
- Compressed air or neutral gas control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic control reduces energy consumption in automation systems
- Supports use of filtered and non-lubricated compressed air to minimize environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ZLM1-C1451A11 pneumatic valve with sensor control is available for immediate purchase, ideal for industrial automation and ZoneControl applications.
