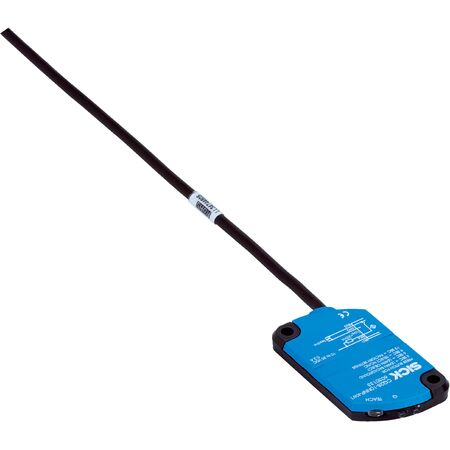

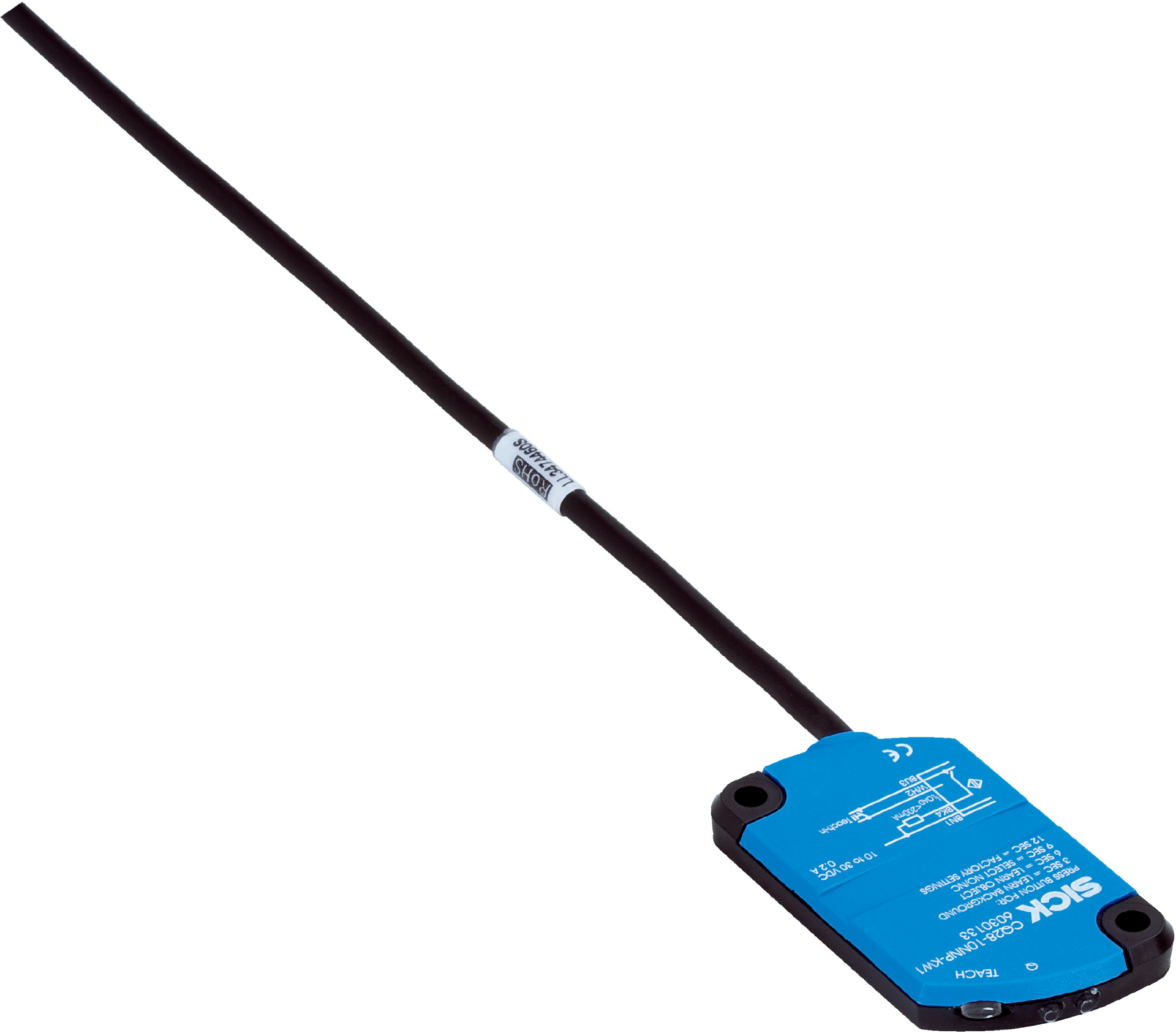

PNP Proximity Sensor CQ28-10NPP-KW1 | IP68 Enclosure | Non-Flush Installation | 10 Hz Switching Frequency | by SICK
The PNP Proximity Sensor CQ28-10NPP-KW1 is designed for industrial automation, featuring an IP68 enclosure for robust protection and a sensing range of 1 mm to 10 mm. With a high switching frequency of 10 Hz and non-flush installation, it's perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V DC
- Current consumption: 12 mA
- Switching frequency: 10 Hz
- Switching output: PNP, NC or NO
- Cable: 4-wire, 2 m PVC
- Conductor size: 0.14 mm²
- Short-circuit protection: Yes
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –20 °C to +85 °C
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Enclosure rating: IP68
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Time delay before availability: ≤ 300 ms
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- PNP switching output with NC or NO output function
- 4-wire DC electrical wiring with 2 m cable
- High switching frequency of 10 Hz
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide ambient operating temperature range from –20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 12 mA current draw
- Durable IP68 rated housing reduces waste by extending product life
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ28-10NPP-KW1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
