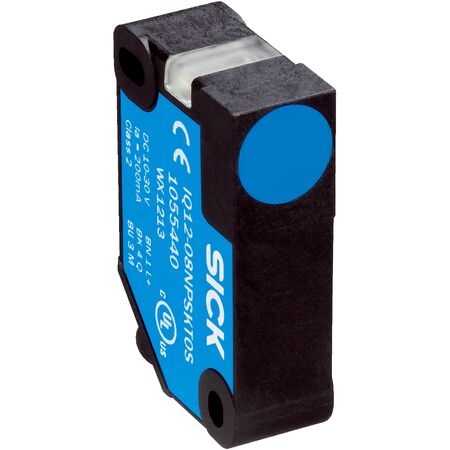

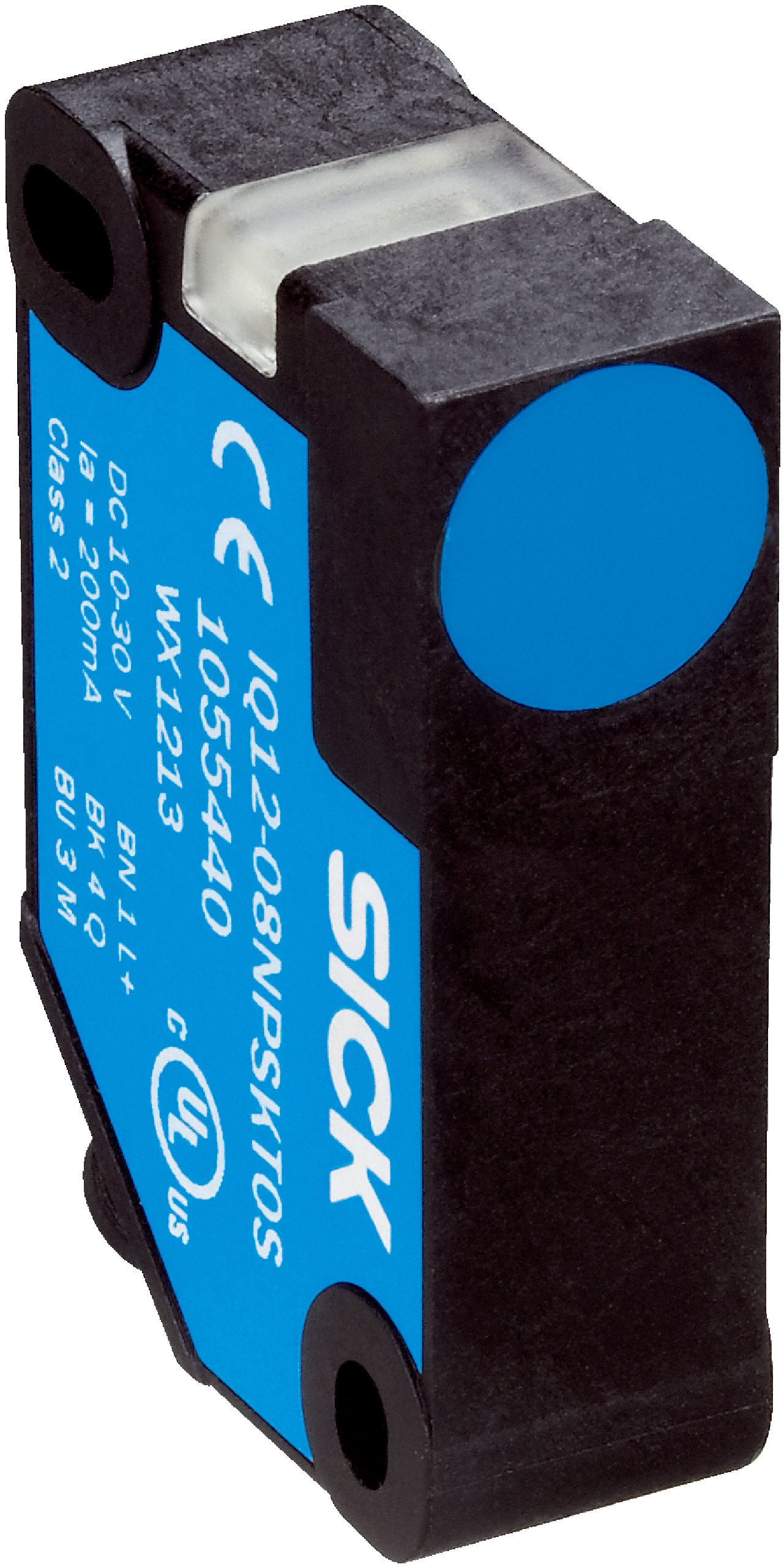

Rectangular PNP Proximity Sensor | IP68 Rated | 8mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Rectangular PNP Proximity Sensor is designed for industrial automation, featuring an IP68 rating for robust protection and an 8mm sensing range. Ideal for safety and control systems, this non-flush sensor offers a high switching frequency of 2000Hz, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 %
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5 % to 15 %
- Reproducibility: ≤ 2 %
- Temperature drift of sensing range: ± 10 %
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Switching output: PNP complementary
- Connection type: Male connector M8, 4-pin
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing and sensing face material: Plastic, VISTAL®
- Tightening torque max: ≤ 1 Nm
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 40mm x 26mm x 12mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rating for robust protection
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP complementary switching output
- Male connector M8, 4-pin connection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Low power consumption with DC 4-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ12-08NPPKT0SS08 sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
