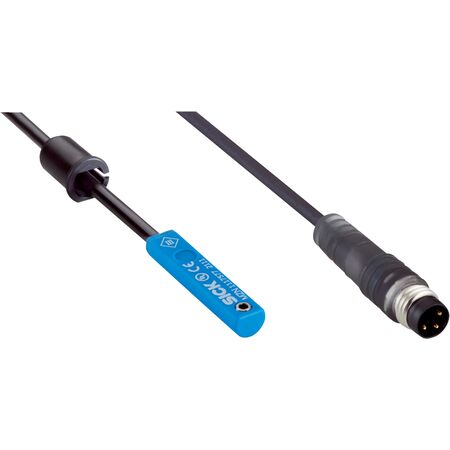

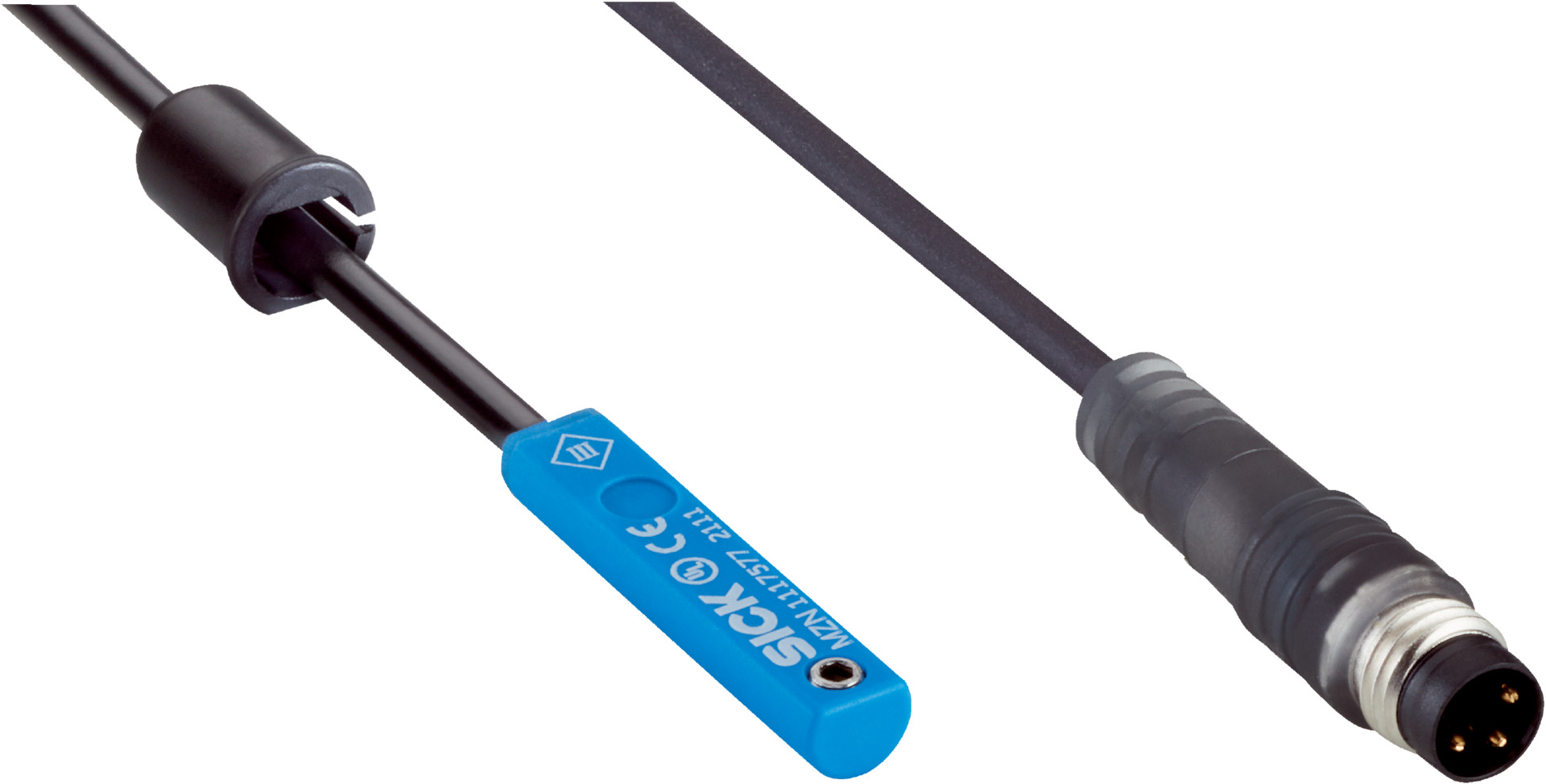

PNP Proximity Sensor MZN-03VPS-KP0 | IP67 Rated | 1000 Hz Switching Frequency | Normally Open Output | by SICK
The PNP Proximity Sensor MZN-03VPS-KP0 is designed for precise cylinder position sensing in industrial automation. With a high switching frequency of 1000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine safety and control systems, this sensor features reverse polarity protection and a status indicator LED for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Cylinder types with adapter: Round body cylinder
- Housing length: 29.5 mm
- Switching output: PNP
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: -40 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with connector M8, 3-pin, 0.3 m length
- Cable diameter: 2.9 mm
- Bending radius: > 3 x cable diameter (fixed), > 10 x cable diameter (flexible)
- Torsion force: ± 270° / 10 cm
- Torsion cycles: > 2,000,000
- Housing material: Plastic
- Cable material: TPU
- Items supplied: 1 x mounting clip plugged in
- Dimensions (H x L x W): 15mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper operation and safety.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 10 mA without load
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZN-03VPS-KP0 proximity sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
