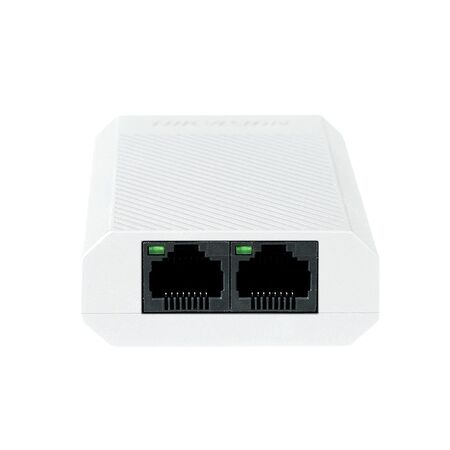

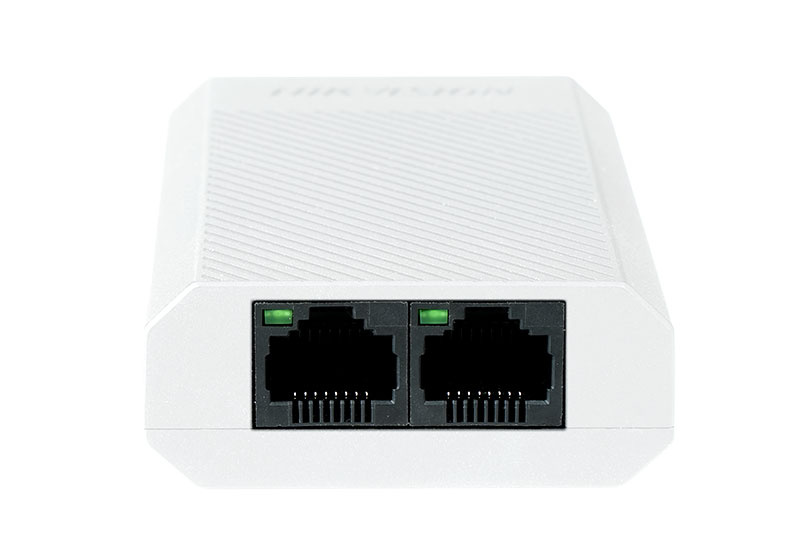

PoE Repeater and Splitter Hikvision
Hikvision PoE repeater and splitter for extending and splitting PoE network connections. Ideal for CCTV and IP camera installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-3E0103DP-E/R, 1-in 2-out PoE Repeater, PoE Extender, PoE Splitter, CCTV PoE Network Extender
Technical Specifications
- Model: DS-3E0103DP-E/R
- Network Ports: 1 × 10/100 Mbps PoE IN and 2 × 10/100 Mbps PoE OUT
- PoE Standard: IEEE 802.3af and IEEE 802.3at
- PoE Power Budget: 30 W
- Maximum Port Power: 30 W
- Switching Capacity: 0.6 Gbps
- Packet Forwarding Rate: 0.45 Mpps
- MAC Address Table: 2K
- Maximum Power Consumption: 1.2 W
- Installation: Desktop-mounted, fan-free design
- Surge Protection: 2 kV
- Operating Temperature: 0 °C to 40 °C
- Operating Humidity: 5% to 95%, non-condensing
- Dimensions (H x L x W): 22mm x 79mm x 53mm
- Weight: 0.1 kg
Key Features
- Extends Ethernet and PoE transmission beyond the standard cable distance
- Provides one PoE input and two PoE output connections
- Allows two PoE cameras or network devices to share a single incoming Ethernet run
- Supports IEEE 802.3af and IEEE 802.3at powered devices
- Plug-and-play operation without external power supply or configuration
- Fan-free plastic housing for quiet operation
- Suitable for Hikvision CCTV and IP camera networks
Applications
- Extending PoE connections to CCTV and IP cameras
- Splitting one incoming PoE network connection to two output devices
- Residential, commercial and small-business surveillance systems
- Longer-distance Ethernet and PoE links between network switches and cameras
Standards & Compliance
- AS/NZS 62368.1:2022 is the applicable information and communication technology equipment safety standard; verify Australian RCM approval for the specific supplied unit
Environmental Benefits
- Low maximum power consumption of 1.2 W helps reduce operating energy use
- Fan-free design reduces moving parts, noise and potential maintenance waste
- Compact construction reduces material use and transport volume
- RoHS and WEEE environmental declarations are listed by the manufacturer
Warranty Information
Hikvision manufacturer warranty applies when supplied through an authorised Australian distribution channel; the exact warranty term should be confirmed for the DS-3E0103DP-E/R unit and purchase channel.
Available Now
Available through Hikvision and authorised Australian security, networking and CCTV distributors.
