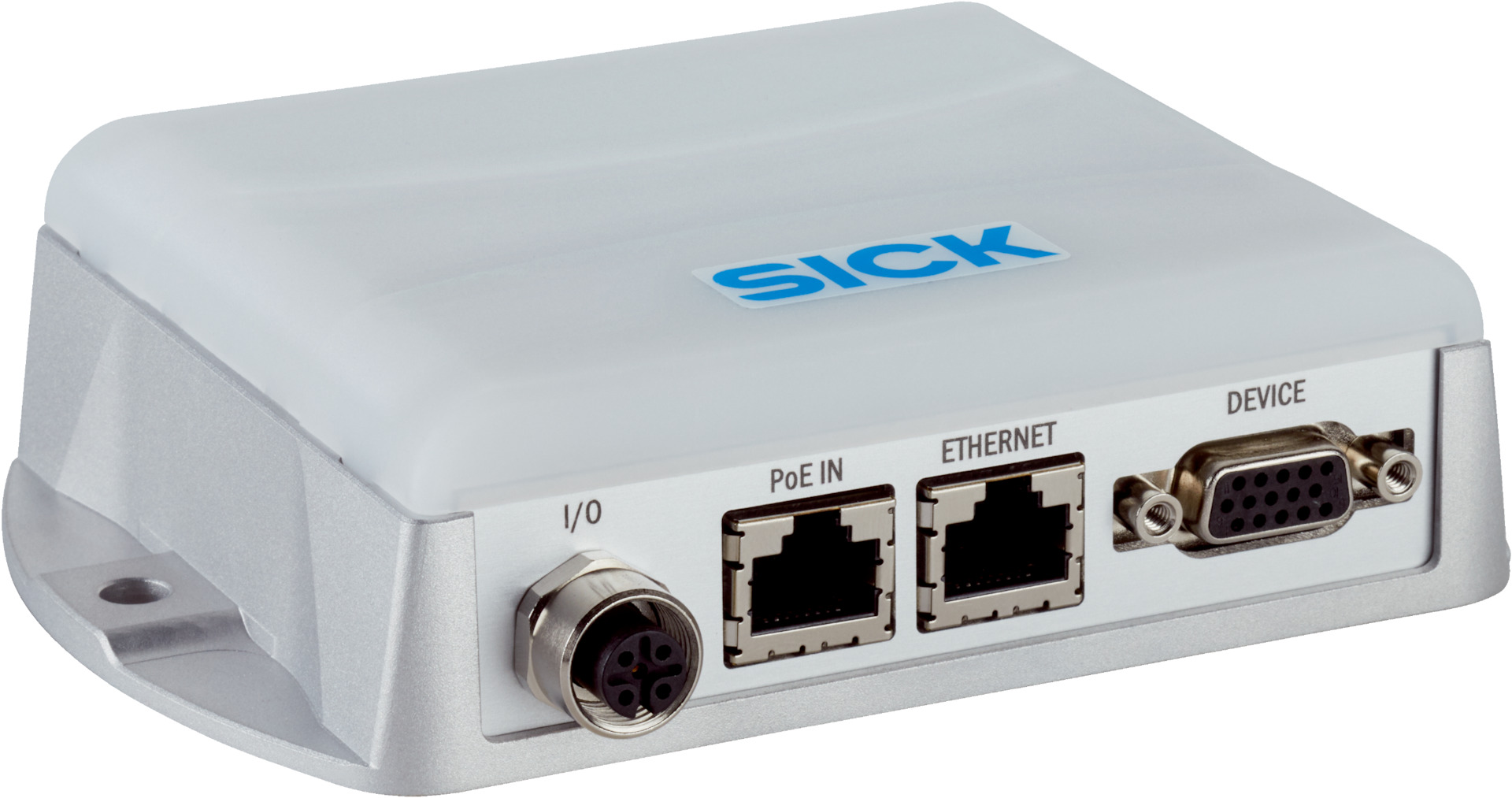

PoE Signal Splitter | 21.5W Power Output | IP20 Enclosure | by SICK
The PoE Signal Splitter is designed to efficiently split Power-over-Ethernet signals into a 24V supply voltage and Ethernet connection. With a power output ranging from 17.5W to 21.5W depending on LED operation, it supports a data transmission rate of 10/100 MBit/s. Ideal for indoor use with SICK sensors, this splitter features multiple connection types and an IP20 enclosure rating, ensuring reliable performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 48 V DC (42 V DC to 57 V DC)
- Power consumption: < 4 W without connected devices and LED control
- Power output: 21.5 W without LED operation, 19.5 W with one LED, 17.5 W with both LEDs
- Connection types: 1 x 15-pin D-Sub HD female, 2 x 8-pin RJ45 female, 1 x 5-pin M12 female A-coded
- Data transmission rate: 10/100 MBit/s Ethernet
- Digital inputs: 1, Digital outputs: 2
- Housing: Aluminum and polypropylene
- Enclosure rating: IP20
- Protection class: III
- Operating temperature: -40 °C to +45 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: < 90%, non-condensing
- EMC compliance: IEC 61000-6-2:2016, IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2008
- Dimensions (H x L x W): 35mm x 138mm x 94mm
- Weight: 0.265 kg
Key Features
- Splits PoE signal into 24 volt supply voltage and Ethernet
- Supports 10/100 MBit/s data transmission rate
- Multiple connection types including 15-pin D-Sub HD, RJ45, and 5-pin M12 connectors
- Power output varies from 17.5 W to 21.5 W depending on LED operation
- Housing made of aluminum and polypropylene
- IP20 enclosure rating and Protection class III
- LED optical indicators for status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with Power-over-Ethernet systems and electrical safety standards.
Applications
- Indoor use for connecting SICK sensors in Power-over-Ethernet (PoE) environments
- Compatible with CLV62x, CLV63x, CLV64x, CLV65x, CLV69x series and Lector RFID read/write devices
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient use of Power-over-Ethernet technology reducing cabling and power consumption
- Supports non-condensing operation with wide temperature range for durable indoor use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

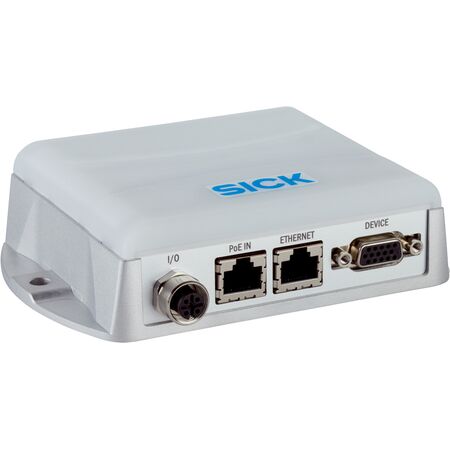

The SICK CDE50-01421 PoE Signal Splitter is available for immediate purchase, ideal for indoor industrial sensor network applications.
