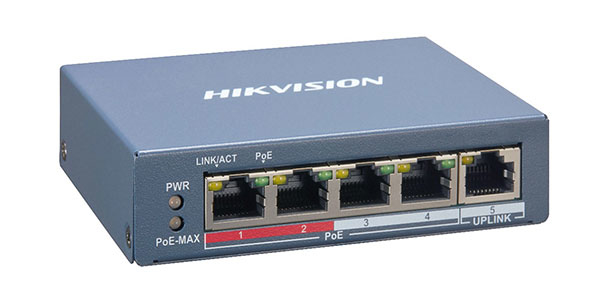

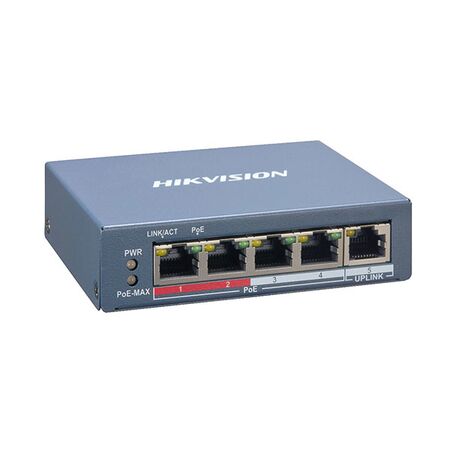

PoE Switch 4 Port Fast Smart V2 Hikvision
Hikvision Fast Smart PoE switch features 4 ports and PoE support. Ideal for CCTV and IP network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4-Port Smart PoE Switch, 4-Port Fast Ethernet PoE Switch, Hikvision DS-3E1105P-EI/M V2
Technical Specifications
- Model: DS-3E1105P-EI/M V2
- PoE Ports: 4 × 10/100 Mbps RJ45
- Uplink Port: 1 × 10/100 Mbps RJ45
- PoE Standard: IEEE 802.3af and IEEE 802.3at
- PoE Power Budget: 45 W
- Maximum Port Power: 30 W
- Switching Capacity: 1.2 Gbps
- Packet Forwarding Rate: 0.89 Mpps
- MAC Address Table: 2K entries
- Power Supply: 54 V DC, 0.92 A
- Maximum Power Consumption: 50 W
- Idle Power Consumption: 5 W
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 5% to 95%, non-condensing
- Installation: Desk-mounted or wall-mounted
- Enclosure: Metal, fan-free design
- Surge Protection: 6 kV
- Dimensions (H x L x W): 27.6mm x 121.1mm x 83.1mm
- Weight: 0.26 kg
Key Features
- Four Fast Ethernet PoE ports for IP cameras and other powered network devices
- Up to 300 m long-range PoE transmission on ports 1 to 4, subject to camera and cable conditions
- PoE watchdog automatically detects and restarts unresponsive cameras
- 802.1Q VLAN support with trunk and access port modes
- STP and RSTP loop prevention
- Port isolation for improved network security
- Static link aggregation with one aggregation group
- Cable detection to assist with locating connection faults
- VIP ports 1 and 2 prioritise data when bandwidth is limited
- Remote monitoring, port restart and firmware management through Hik-Partner Pro
- Fan-free metal enclosure for reduced operating noise
Applications
- IP CCTV camera installations
- Small surveillance networks
- Residential and commercial security systems
- Small office and retail Ethernet networks
- Networked access control and other PoE devices
- Long-distance camera connections using compatible Ethernet cabling
Standards & Compliance
- AS/NZS 62368.1:2022 is the applicable Australian/New Zealand safety standard for information and communication technology equipment; Australian RCM conformity for this specific model should be confirmed with the authorised distributor
- Hikvision datasheet lists CE-EMC, CE-LVD, CE-RoHS, WEEE and REACH declarations, but does not publish a specific Australian RCM declaration for this model
Environmental Benefits
- RoHS and REACH declarations support the restriction and management of hazardous substances
- WEEE marking supports appropriate end-of-life electrical and electronic equipment recycling
- Fan-free design reduces moving-part wear and may extend service life
- 5 W idle consumption helps reduce energy use when network traffic and PoE demand are low
- Metal enclosure is recyclable through suitable metal and electronic equipment recovery streams
Warranty Information
Hikvision warranty applies to products purchased through authorised Australian distribution channels, with the warranty period varying by product and model. Confirm the applicable term with the supplying distributor and retain proof of purchase.
Available Now
Available through Hikvision and authorised Australian distributors, subject to distributor stock and regional model availability.
