Trade Discount 25%

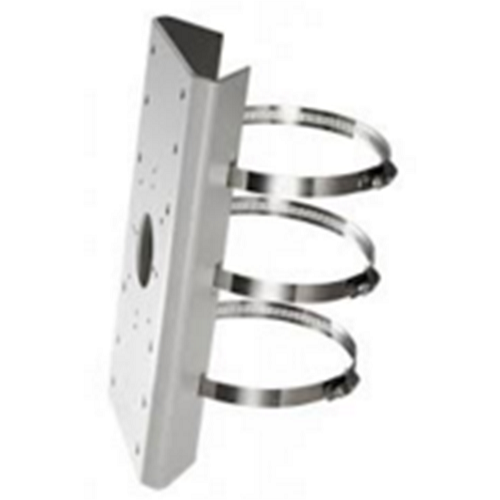

Pole Mount Bracket DS-1275ZJ Hikvision
Hikvision pole mount bracket features pole mounting for cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CCTV Pole Mount Bracket, Vertical Pole Mount, Hikvision Camera Pole Bracket
Technical Specifications
- Model: DS-1275ZJ
- Mount Type: Pole mount for CCTV cameras
- Material: Steel and stainless steel
- Finish: Hikvision white
- Compatible Pole Diameter: 67–127 mm
- Maximum Clamp Load: 10 kg
- Installation Requirement: Supporting pole should withstand at least three times the combined camera and bracket weight
- Dimensions (H x L x W): 127mm x 250mm x 46mm
- Weight: 1.27 kg
Key Features
- Designed for mounting Hikvision CCTV cameras and compatible wall brackets to poles
- Adjustable clamp accommodates poles from 67 mm to 127 mm diameter
- Steel mounting plate with stainless steel clamp components
- 10 kg maximum clamp load
- Suitable for commercial, industrial and general security installations
- For outdoor use when installed with appropriate weatherproofing and compatible equipment
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications installer. Confirm the pole structure can support at least three times the combined camera and bracket weight, and use suitable weatherproofing for outdoor installations.
Applications
- CCTV camera pole mounting
- Commercial security camera installations
- Industrial and infrastructure surveillance
- Traffic, perimeter and facility monitoring systems
- Mounting compatible Hikvision wall brackets to poles
Standards & Compliance
- AS/NZS 62676.4:2020 – relevant application and installation guidance for video surveillance systems; product-specific conformity is not stated by the manufacturer
Environmental Benefits
- Steel and stainless steel components are recyclable at end of service life
- Durable metal construction can support extended product service life and reduce replacement waste
- Passive mounting accessory requires no electrical power during operation
Warranty Information
Hikvision Australia documentation lists brackets and other accessories with a 12-month warranty, subject to the applicable sales agreement and authorised distribution conditions.
Available Now
Available through Hikvision and authorised Australian security and surveillance distributors.
