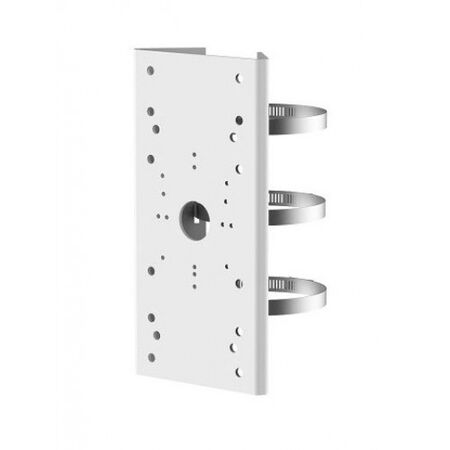

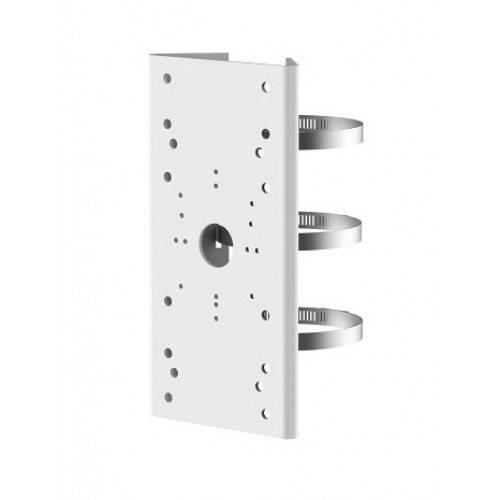

Pole Mount Bracket DS-1275ZJ-SUS Hikvision
Hikvision pole mount bracket features pole mounting for cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision CCTV Pole Mount, Horizontal Pole Mount, Stainless Steel Camera Pole Bracket
Technical Specifications
- Mount Type: Horizontal pole mount
- Material: Stainless steel with surface spray treatment
- Pole Diameter Range: 67–127 mm
- Maximum Load Capacity: 10 kg
- Colour: Hikvision white
- Outdoor Installation: Waterproof rubber required
- System Compatibility: Cooperates with compatible Hikvision pendant mounts
- Structural Requirement: Supporting pole should carry at least three times the combined camera and mount weight
- Dimensions (H x L x W): 46mm x 250mm x 127mm
- Weight: 1.5 kg
Key Features
- Adjustable fit for poles from 67 mm to 127 mm diameter
- One-piece stainless steel construction for structural reliability
- Designed for Hikvision CCTV and security camera installations
- Maximum rated load of 10 kg
- Suitable for outdoor installations when used with the required waterproof rubber
- Surface-treated stainless steel construction for improved durability
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or security installer. Confirm that the pole and fixings can support at least three times the combined camera and mount weight, and use the required waterproof rubber for outdoor applications. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/en/support/regional-materials/pakistan-/DatasheetofDS-1275ZJ-SUS_20221104.pdf?utm_source=openai))
Applications
- Mounting compatible Hikvision CCTV cameras on horizontal poles
- Commercial and industrial security surveillance installations
- Outdoor perimeter, site and facility monitoring
- Pole-mounted camera systems requiring an adjustable stainless steel bracket
Standards & Compliance
- Relevant CCTV installation context: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications; the manufacturer does not state product-specific certification for this passive mounting bracket. ([hsenode.com](https://www.hsenode.com/NewSamples/AS/125266347/AS-NZS-62676.1.1-2020-1.pdf?utm_source=openai))
Environmental Benefits
- Stainless steel construction offers durability and corrosion resistance, helping extend service life and reduce replacement waste
- Stainless steel is recyclable at end of life
- Passive mechanical operation requires no electrical power during use
Warranty Information
Hikvision's published Australian warranty schedule lists brackets as accessories with a 12-month warranty, subject to the applicable sales agreement, valid warranty documentation and purchase through an authorised distribution channel. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy-V6.0.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
