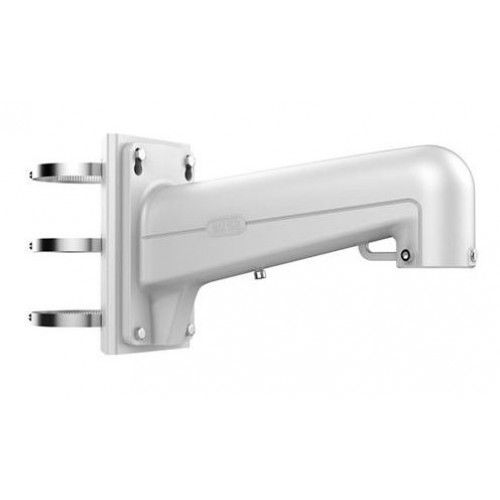

Pole Mount Bracket to Suit PTZ Camera Hikvision
Hikvision pole mount bracket for PTZ cameras features a fixing for poles. Ideal for CCTV installs with PTZ cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Pole Mount Adapter, Hikvision Vertical Pole Mount Bracket, PTZ Camera Pole Bracket
Technical Specifications
- Model: DS-1602ZJ-Pole
- Bracket Type: Vertical pole mount bracket
- Compatibility: Hikvision speed dome and PTZ cameras with pendant mounting
- Material: Aluminium and steel
- Colour: Hikvision white
- Compatible Pole Diameter: 67–127 mm
- Clamp Load Capacity: 10 kg
- Installation Requirement: Pole load capacity should exceed three times the combined weight of the camera and bracket
- Mounting: Designed for installation on a vertical pole and suitable flat mounting surfaces
- Dimensions (H x L x W): 126.2mm x 350.8mm x 194mm
- Weight: 2.04 kg
Key Features
- Designed for Hikvision PTZ and speed dome camera installations
- Suitable for vertical poles measuring 67–127 mm in diameter
- Aluminium and steel construction
- White finish for compatibility with Hikvision camera hardware
- 10 kg clamp load capacity
- Supports pendant-style PTZ camera mounting
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Verify that the pole, fixings and clamp can support the camera and bracket assembly; Hikvision specifies that the pole load capacity should exceed three times the combined weight of the camera and bracket. Follow the camera manufacturer's mounting and cabling instructions.
Applications
- Mounting Hikvision PTZ cameras to vertical poles
- Commercial and industrial CCTV installations
- Security surveillance systems requiring elevated PTZ camera positioning
- Outdoor camera installations where wall or ceiling mounting is unsuitable
Environmental Benefits
- Aluminium and steel components are recyclable at end of service life
- Durable metal construction can support extended product service life and reduce replacement waste
- Passive mounting hardware does not require operational electrical power
Warranty Information
Hikvision Australia publishes a five-year warranty for specified premium project-oriented product lines, but the DS-1602ZJ-Pole bracket is not identified in the available premium warranty schedule. Confirm the applicable accessory warranty with the authorised Australian distributor before purchase. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/banner-/project-oriented-products/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian CCTV, security and electrical distributors.
