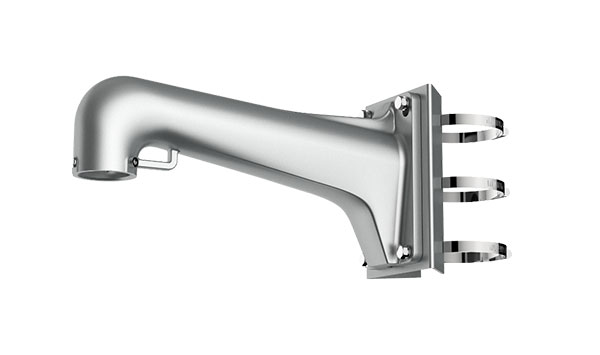

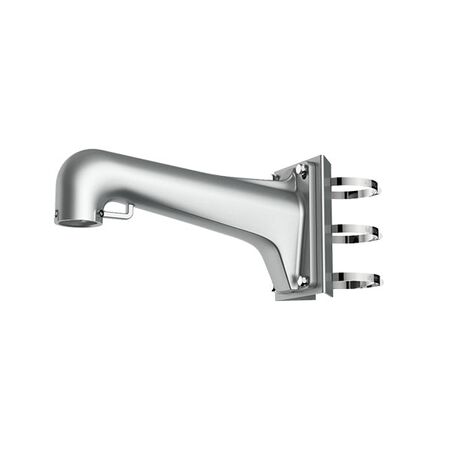

Pole Mount to Suit PTZ Camera Grey Hikvision
Hikvision PTZ pole mount features a grey finish and pole mounting for PTZ cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1604ZJ-Pole-P, PTZ Vertical Pole Mount, Speed Dome Pole Mount Bracket
Technical Specifications
- Model: DS-1604ZJ-Pole-P
- Mounting Type: Vertical pole mount for PTZ and speed dome cameras
- Appearance: Platinum grey
- Material: Aluminium alloy and steel
- Adjustable Pole Diameter: 67–127 mm
- Maximum Load Capacity: 10 kg
- Cable Access: Bottom and rear outlets
- Installation Surface: Flat surface required
- Outdoor Installation: Waterproof rubber required for outdoor applications
- Dimensions (H x L x W): 170.7mm x 355.5mm x 261.8mm
- Weight: 3.8 kg
Key Features
- Designed for Hikvision PTZ and speed dome cameras
- Integrated junction box for cable management and camera connection
- Adjustable clamp suitable for poles from 67 mm to 127 mm diameter
- Aluminium alloy and steel construction with surface spray treatment
- Safety-rope hook assists with camera installation
- Grey finish suitable for external CCTV installations
Applications
- Outdoor CCTV and security camera installations
- Vertical pole mounting of Hikvision PTZ cameras
- Speed dome camera installations on lighting poles, masts and service poles
- Commercial, industrial and infrastructure surveillance systems
Environmental Benefits
- Aluminium and steel components are recyclable at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- Supports installation of CCTV systems that can improve monitoring efficiency and reduce unnecessary site visits
Warranty Information
Hikvision warranty support is subject to the applicable product terms, purchase documentation and authorised Australian distribution arrangements. A specific warranty period for this mounting accessory was not identified; confirm coverage with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
