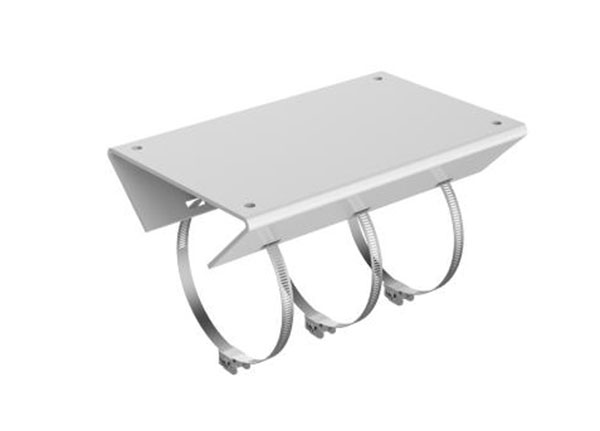

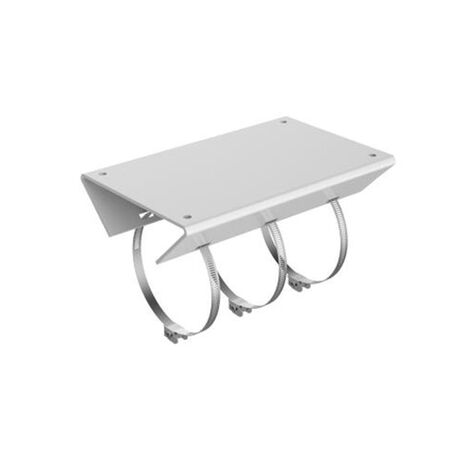

Pole Strap Bracket White to Suit PTZ Camera Hikvision
Hikvision white pole strap bracket to Suit PTZ cameras. Ideal for pole mounted CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1602ZJ-pole, PTZ Pole Mount Bracket, Speed Dome Pole Mount, Vertical Pole Mount Bracket
Technical Specifications
- Model: DS-1602ZJ-pole
- Bracket Type: Vertical pole mount for PTZ speed dome cameras
- Material: Aluminium and steel
- Colour: Hikvision white
- Compatible Pole Diameter: 67–127 mm
- Maximum Clamp Load: 10 kg
- Mounting Application: Pendant mounting of speed dome PTZ cameras
- Installation Requirement: Supporting pole should withstand at least three times the combined camera and bracket weight
- Dimensions (H x L x W): 126.2mm x 350.8mm x 194mm
- Weight: 2.04 kg
Key Features
- Designed for Hikvision PTZ and speed dome camera installations
- Suitable for vertical pole mounting on poles from 67 to 127 mm diameter
- Aluminium and steel construction with a durable white finish
- Suitable for indoor and outdoor CCTV mounting applications
- Provides a stable pendant-mount platform for pole-mounted PTZ cameras
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Confirm the pole structure, fixings and mounting surface can safely support at least three times the combined camera and bracket weight.
Applications
- Pole-mounted PTZ CCTV camera installations
- Outdoor security and surveillance systems
- Commercial, industrial and infrastructure CCTV installations
- Pendant mounting of Hikvision speed dome cameras
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to video surveillance system requirements; no product-specific Australian certification for this passive mounting bracket was identified.
Environmental Benefits
- Aluminium and steel components are recyclable at end of service life
- Durable metal construction can extend service life and reduce replacement waste
- Passive accessory with no electrical power consumption during operation
Warranty Information
Hikvision Australia warranty coverage is subject to the applicable product and supply terms. Hikvision's published RMA policy identifies brackets as consumable accessories with a 12-month warranty period; confirm coverage with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
