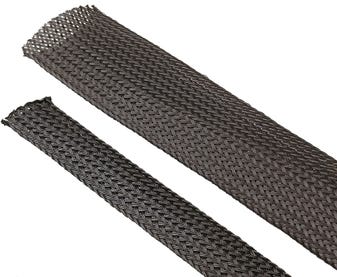

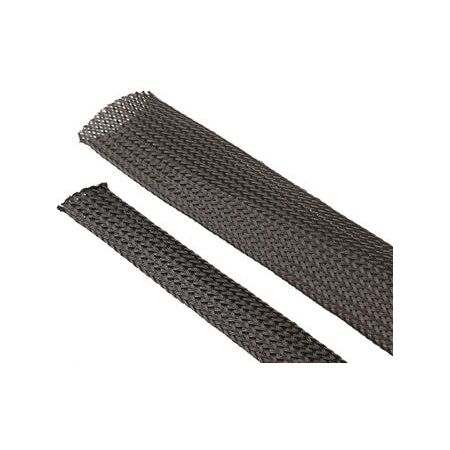

Polyester Braid Sleeve 12-22mm | Durable & Flexible | 4m Length | Black by Cabac
Polyester braid sleeve in 12-22mm diameter, 4m long—ideal for cable management and protection. Built for DIY enthusiasts and professionals, offering durability and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Polyester Braid Sleeve 12-22mm | 4m Length | Durable & Flexible | Black by EPBS
Brand: Cabac
SKU: EPBS15/K
Alternatively Known As: Polyester Braided Cable Sleeve, Expandable Cable Sleeve, Cable Management Sleeve, Heat Resistant Cable Sleeve, Protective Wire Sleeve
Technical Specifications
- Nominal Internal Diameter: 15mm
- Minimum Internal Diameter: 12mm
- Maximum Internal Diameter: 22mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 4 meters
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 4mm x 4000mm x 22mm
- Weight: 0.05 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 12mm to 22mm
- Contracts in length while expanding diameter
- Mechanical protection against wear and abrasion
- Resistant to most aggressive chemicals
- Heat resistant and self-extinguishing
- Easy installation with ability for wire breakouts
Professional Installation Requirements
- Installation is straightforward and can be performed by qualified electricians or cable management professionals to ensure proper harness protection and compliance with electrical standards.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Industrial and commercial wiring protection
- Automotive and machinery wiring harness protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve energy efficiency by protecting conductors
- Chemical resistance extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 12-22mm 4m is available for immediate purchase, ideal for cable management in industrial, commercial, and residential electrical installations.
