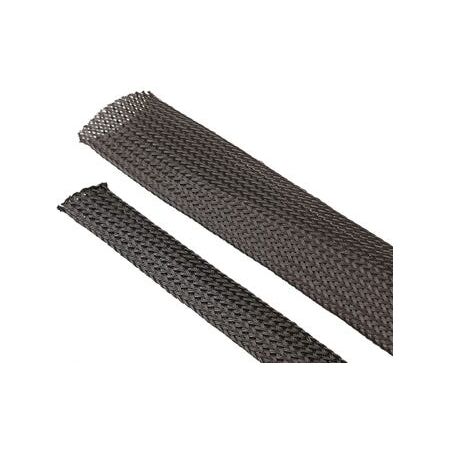

Polyester Braid Sleeve 5-10mm 100m Black Cabac
Cabac expandable polyester braid sleeve, 5-10mm, 100m, black. Heat-resistant, self-extinguishing cable protection to IEC 684-3-49.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Internal Diameter: 6mm
- Minimum Internal Diameter: 5mm
- Maximum Internal Diameter: 10mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 100m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 6mm x 100000mm x 100000mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 5mm to 10mm
- Contracts in length to allow expansion of internal diameter
- Mechanical protection against wear and surface abrasions
- Resistant to most aggressive chemicals
- Heat resistant and self-extinguishing polyester material
- Easy installation with ability to pass individual wires through sleeving
Professional Installation Requirements
- Installation is straightforward and can be performed by trained personnel; professional installation recommended for complex cable harnesses to ensure optimal protection and compliance.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic installations
- Industrial and commercial wiring protection
- Automotive and machinery cable protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve longevity of cables, reducing replacement frequency
- Chemical resistance minimizes environmental contamination from damaged cables
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 5-10mm 100m is available now for immediate purchase. Ideal for cable management and protection in industrial, commercial, and residential applications.
FAQ
Q: What applications is this polyester braid sleeve suitable for?
A: It is suitable for cable management, electrical and electronic cable harnesses, industrial wiring protection, and automotive or machinery cable protection.
Q: Does this braid sleeve meet recognised industry standards?
A: Yes. It conforms to IEC684-349, UL224, and AS/NZS 3820 Essential Safety Requirements for Electrical Equipment.
Pair this braid sleeve with fibreglass sleeving where additional high-temperature cable insulation is required.
Finish cable assemblies with heatshrink tubing to provide a neat and secure cable termination.
Organise multiple cable runs using spiral binding kit for flexible wire bundling and protection.
