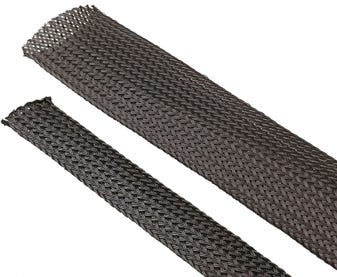

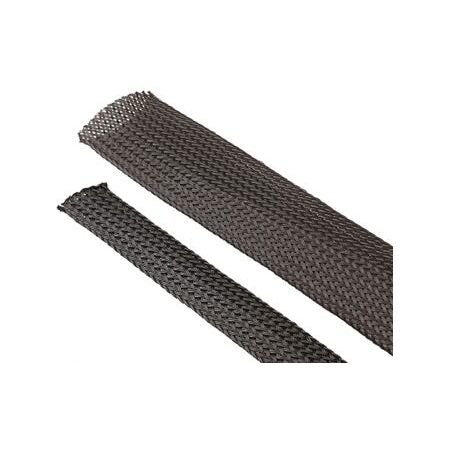

Polyester Braid Sleeve 5-10mm | 8m Length | Durable & Flexible | Black by Cabac
This exp. polyester braid sleeve, measuring 5-10mm in diameter and 8m in length, is ideal for protecting cables and wires. Built for versatility and durability, it offers flexibility and resistance to wear, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Exp. Polyester Braid Sleeve 5-10mm | 8m Length | Durable & Flexible | Black by Unbranded
Brand: Cabac
SKU: EPBS6/K
Alternatively Known As: Polyester Braided Cable Sleeve, Expandable Cable Sleeve, Cable Management Sleeve, Heat Resistant Cable Sleeve, Protective Cable Braid
Technical Specifications
- Nominal Internal Diameter: 6mm
- Minimum Internal Diameter: 5mm
- Maximum Internal Diameter: 10mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 8 meters
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 80mm x 8000mm x 80mm
- Weight: 0.1 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 5mm to 10mm
- Contracts in length while expanding in diameter
- Made from monofilament polyester
- Heat resistant and self-extinguishing
- Resistant to most aggressive chemicals
- Allows individual wires to pass through for breakouts
- Provides mechanical protection against wear and abrasion
Professional Installation Requirements
- No special professional installation required; easy to install by hand for cable bundling and protection.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Mechanical protection for conductors in industrial and commercial settings
- Suitable for use in environments requiring chemical resistance and thermal protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve longevity of cables, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 5-10mm 8m is available now for immediate purchase. Ideal for cable management and protection in industrial, commercial, and residential applications.
