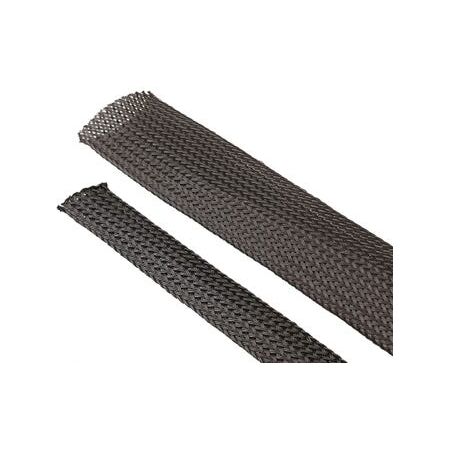

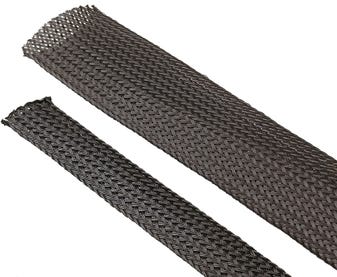

Polyester Braid Sleeve 8-16mm | 5m Length | Durable & Flexible | Black by Cabac
Polyester braid sleeve in 8-16mm diameter, 5m length—ideal for cable management and protection. Built for DIY enthusiasts and professionals, offering durability and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Polyester Braid Sleeve 8-16mm | 5m Length | Durable & Flexible | Black by EPBS
Brand: Cabac
SKU: EPBS10/K
Alternatively Known As: Polyester Braided Cable Sleeve, Expandable Cable Sleeve, Cable Management Sleeve, Heat Resistant Cable Sleeve, Protective Cable Braid
Technical Specifications
- Nominal Internal Diameter: 10mm
- Minimum Internal Diameter: 8mm
- Maximum Internal Diameter: 16mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 5m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 50mm x 5000mm x 50mm
- Weight: 0.1 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter with 1:2 expansion ratio
- Contracts in length to allow diameter expansion
- Heat resistant and self-extinguishing polyester material
- Resistant to most aggressive chemicals
- Allows individual wires to pass through for breakouts
- Provides mechanical protection against wear and abrasion
Professional Installation Requirements
- Installation is straightforward and can be performed by trained personnel; no specialized tools required but proper handling is recommended to maintain sleeve integrity.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness for electrical and electronic wiring
- Mechanical protection for conductors in industrial and commercial settings
- Suitable for use in environments requiring chemical resistance and thermal protection
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable cable protection reduces cable waste
- Heat resistant properties improve cable longevity, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 8-16mm 5m is available now for immediate purchase. Ideal for cable management in industrial, commercial, and residential electrical installations.
