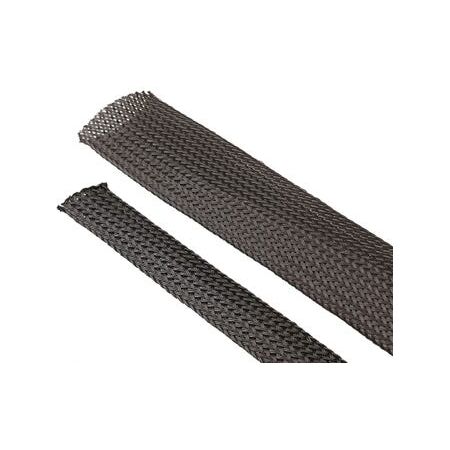

Polyester Braid Sleeve Highly Flexible 25-45mm 100m Cabac
Cabac Polyester Braid Sleeve Highly Flexible 25-45mm 100m is ideal for floor-level and surface cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Internal Diameter: 30mm
- Minimum Internal Diameter: 25mm
- Maximum Internal Diameter: 45mm
- Expansion Ratio: 1:2
- Monofilament Diameter: 0.22mm
- Reel Length: 100m
- Material: Polyester
- Operating Temperature Range: -50 to +150 degrees Celsius
- Flammability: Self-extinguishing
- Chemical Resistance: Resistant to most aggressive chemicals
- Conformant Standards: IEC684-349, UL224
- Dimensions (H x L x W): 45mm x 100000mm x 45mm
- Weight: 0.5 kg
Key Features
- Highly flexible polyester braided sleeving
- Expandable internal diameter from 25mm to 45mm with 1:2 expansion ratio
- Contracts in length as diameter expands for secure fit
- Made from monofilament polyester providing mechanical protection
- Heat resistant and self-extinguishing material
- Resistant to most aggressive chemicals
- Easy installation with ability to pass individual wires through sleeving for breakouts
- Available in bulk reels of 100m and kit packs of 3m
Professional Installation Requirements
- Installation is straightforward and can be performed by qualified electricians or cable management professionals to ensure proper harnessing and protection.
Applications
- Cable management for bundling loose cables and wires
- Protective cable harness creation in industrial and commercial electrical installations
- Mechanical protection for conductors against wear and surface abrasions
- Suitable for use in environments requiring chemical resistance and thermal protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable cable protection reduces need for frequent replacements
- Heat resistant and self-extinguishing properties enhance safety and reduce fire risk
- Chemical resistance extends product lifespan, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Exp.Polyester Braid Sleeve 25-45mm 100m is available now for immediate purchase. Ideal for electrical cable management in industrial, commercial, and residential applications.
FAQ
Q: What cable size range does this expandable braid sleeve support?
A: It accommodates cable bundles from 25mm to 45mm in diameter with a 1:2 expansion ratio.
Q: Is this cable sleeve suitable for demanding industrial environments?
A: Yes. It is manufactured from polyester, is resistant to most aggressive chemicals, features self-extinguishing properties, and conforms to IEC684-349 and UL224.
Complete cable bundling with a spiral cable management solution where flexible wire organisation is required.
Protect individual wire groups using an expandable polyester braid sleeve for smaller cable diameters.
Add fibreglass sleeving where cables require additional high-temperature protection.
